NR      MODE      CALL       S/R      LOC          DATE        ANTENNA   KW      MYRIG
Not counted for initial (same stn wkd before):
RA1AX/3=stn of RA3AQ, RA0FU= RA0FCA(same stn), UA3MSF (wkd fm RV3IG-stn, AO6VQ=EA6VQ, DL50SOP, DL0DBR=DL9MS, , OK1CU=OK1UGA(same stn), SM2A=SM2ILF DM1CG , DB0GSN, DK0KK, DK0HOR, DL25UNION = QTH DF7KF , IY1GNM=IK1UWL, RW9USA & UA9UHN same QTH,  RW7A=rig of RN6BN, RA6A=exRA6DA, EB3DGV wkd frm QTH of EA3BB, UP20EME=UN9L, N6BBS=W6BBS, SK5AA=SM5DIC, N8PR &NZ5N same QTH UT2G=UR7GO, UY5HF=UW1G, R275T=UA4HTS, LU1CGB=LU1C, PA2DX=QTH PE1L, SP4KM=SP4K, R3BM=RL3BM PE5OL=PE1L, YR1A=YO3DDZ, R9SL=UA9SL, S56P & S57M same QTH, SV6KRW=SW6KRW, 3Z4EME=SP4K, EM110RAEM=UZ5DZ, W1AW/5=NR5M, RK22WG=RA6A, RZ1AWT=QTH RU1AA, RA9LR=R110RAEM
AM08TJ=EA8TJ, SO0EME=SP4K, YO9FRJ=YO4FRJ, RA6AX=RN6BN

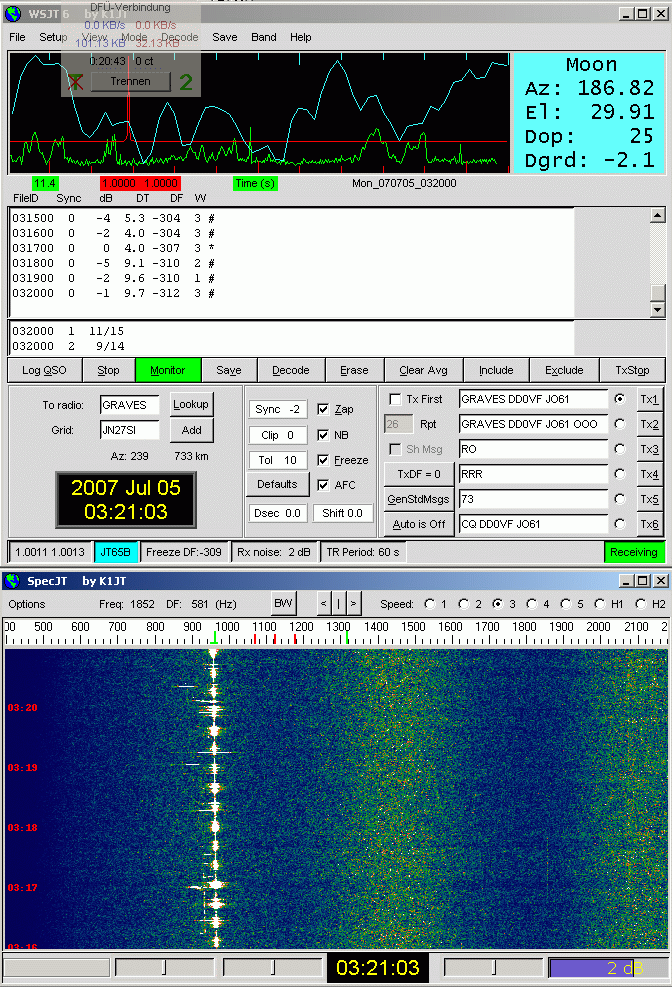

graves_wsjt
The moonecho of the Graves-Radar from JN27SI (east of Dijon)
This 4x8el (4m boom) was up from 2008-2010 in JO60UX
2x9el (5m boom) with polarity rotation since 05/2010 in JO61TB
2x9el (5m boom) with polarity rotation since 05/2010 in JO61TB
Power at the antenna:
2000-2012    CW: 550W    Digi:  350W (save)
since 2012 homemade SSPA~700W
running at 650W in the shack (~600W @antenna)
TRX
was a IC275 for 21 years, using FT897D now.

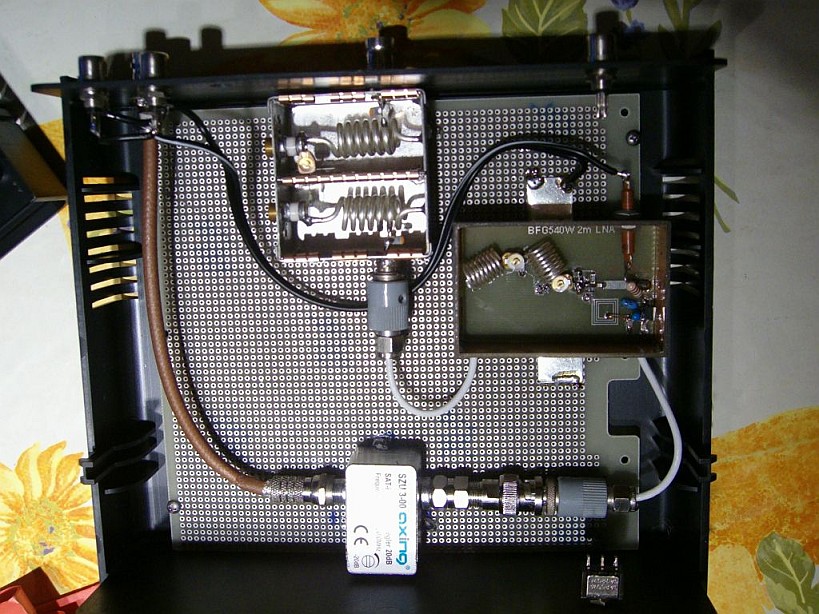

high Q filter and 2nd stage (The IC275 producing some weak birds into the IF, thats the reason for the extra gain)

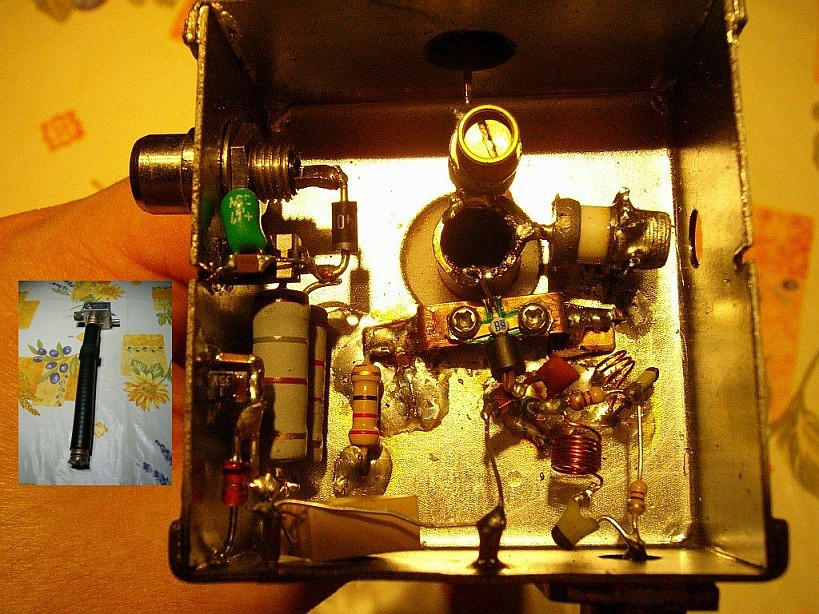

7/8 cavitypreamp MGF1303 (0.7dB nf)
7/8" cavity-preamp
filter & 2nd  stage
( groundgain only at very high declinations > +20  deg - QTF 300 and more at moonset)

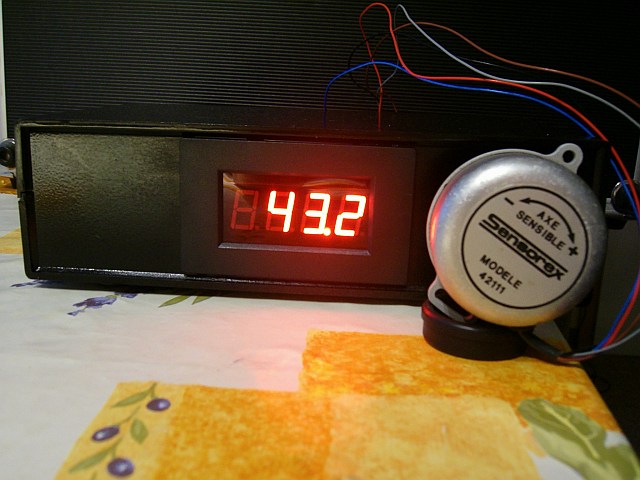

elevation sensor and display unit (I'm very pleased with this sensor after some troubles with the LIDL-sensor)
elevation-sensor
  AMATEUR-RADIO     DX on 144MHz

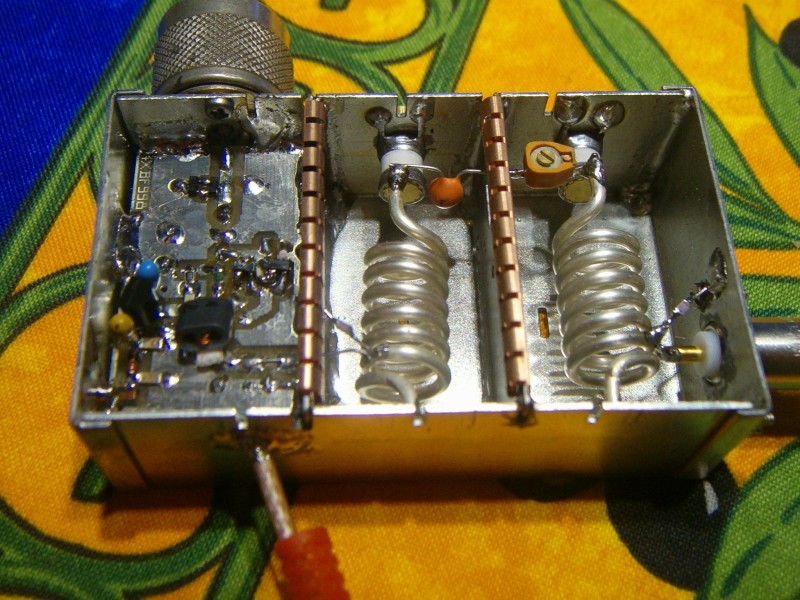

4xBF998
Spare-preamp
4xBF998 parallel
QSO with a single medium sized antenna and moderate power on both sides -24/-22 !!
11el 6.6m boom (own design) at the former QTH in JO60UX
on7eh wkd with 1x11el
( groundgain at MR QTF 080░-095░)

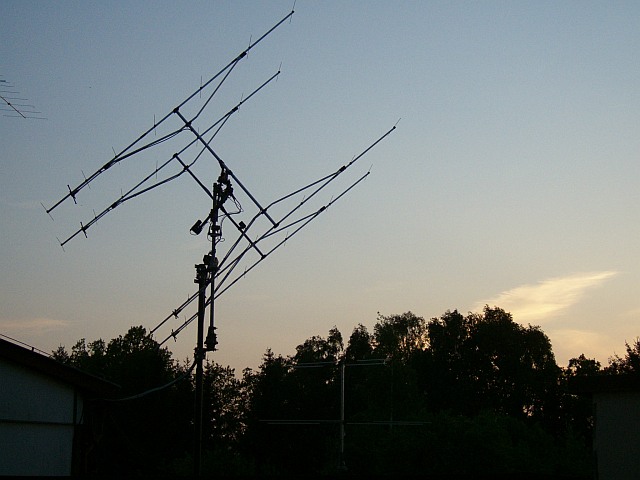

This 4x8el (16.0dBd)was up from 2008 to 2010 in JO60UX

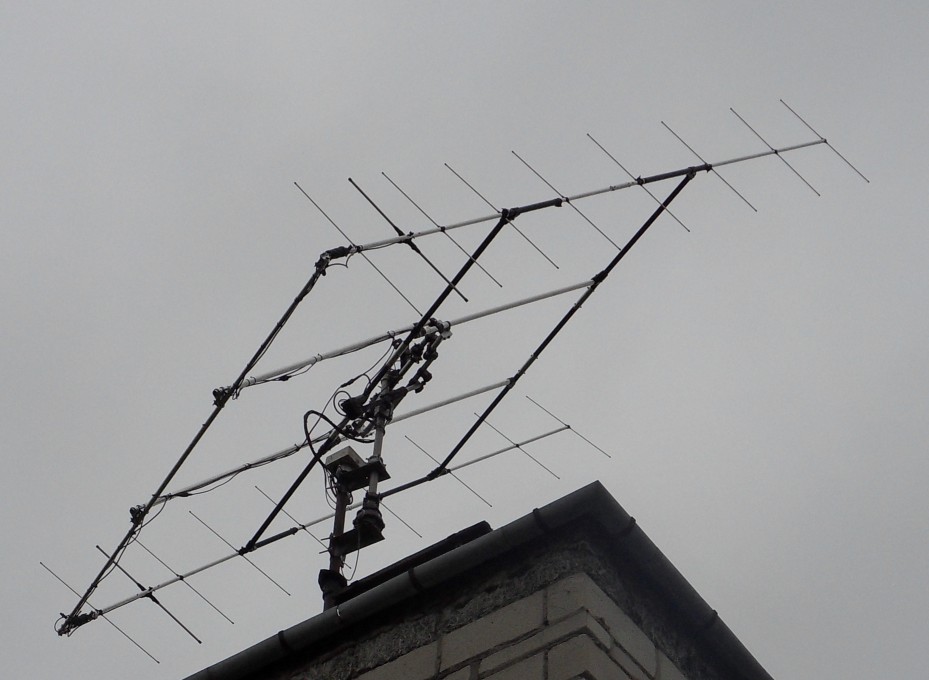

2x9RP (rotatable polarity) in Hpol
since may 2010 in JO61TB
2x9RP (rotatable polarity) in Vpol
since may 2010 in JO61TB
               Smallest stn rcvd with 2x9:
VK3KH at -25 with 1x3wl and 120W abt 2kW erp only (seen on 3 different days)!
DXCC 2m #73
DXCC 2m #73
EME QSOs from fix stn at all: 1413
seems there is a small groundgain window, but for a few minuts only
