The Drake TR7 is still a remarkable good transceiver compared with a lot of modern transceivers.
Also the TR7 is very simple to operate, no complex menus, and easy to service and to maintain. It has also good intermodulation specifications.
So I acquired via the internet in Germany  and Holland some TR7 transceivers for approx. $150  each and all in working condition.
Of course has the now more then 30 years old TR7 some disadvantages:

  • The PTO is drifting continuously
  • Ugly, very heavy and big power supply has same dimensions of TR7
  • No Notchfilter
  • Sensitivity on the higher bands is some times to low
  • No speech processor
  • No DSP noise reduction
  • No tune button on the front
  • Key jack on the back of the transceiver
  • Bulbs in s meter and analogue dial
  • Phase noise VCO 116 dBc @ 10 KHz

Improvements made:

  • New small power supply
  • built in Notchfilter
  • Built in speech processor
  • Tune facility on the front
  • Built in Pre amplifier like R7
  • Key jack at the front of TR7
  • DAFC ( drift correction  for the PTO)
  • Bulbs replaced by LED’s
  • Blower replaced  by  a very quiet 12 Volts one
  • Temperature switch mounted on the heatsink to switch in the blower in at 40 degrees Celsius
  • Blower direction changed for better efficiency
  • Restyled modern and professional housing
  • Mechanical changes front panel  height increases with 15 mm
  • New large Led display
  • New top cover and under cover

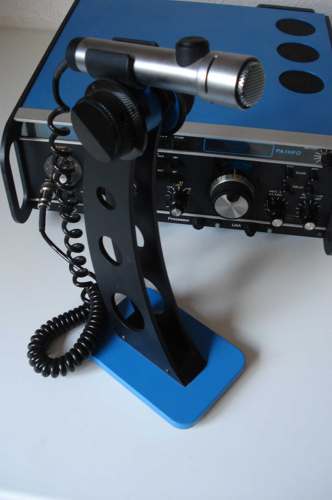

  • Design Microphone in same style of the renewed TR7

Down Load the de complete renvovation story in English written by DK4DDS in pdf format 2 MB:

Herunterladen Sie die ganze eneuerungs Gesichte von Drake TR7 geschrieben vom DK4DDS im pdf Format 2 MB

Click on this Link             www.wb4hfn.com/DRAKE/DrakeArticles/THE_DRAKE_TR7_RENEWED.pdf







Voranschit des Netzteils für TR7 mit eingebautes Lautsprecher

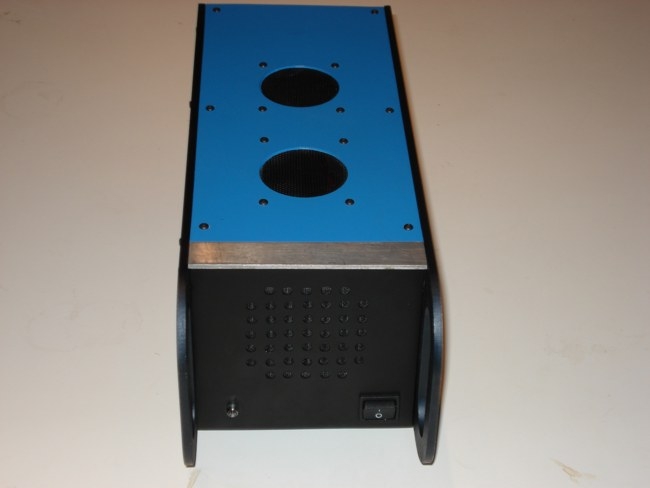

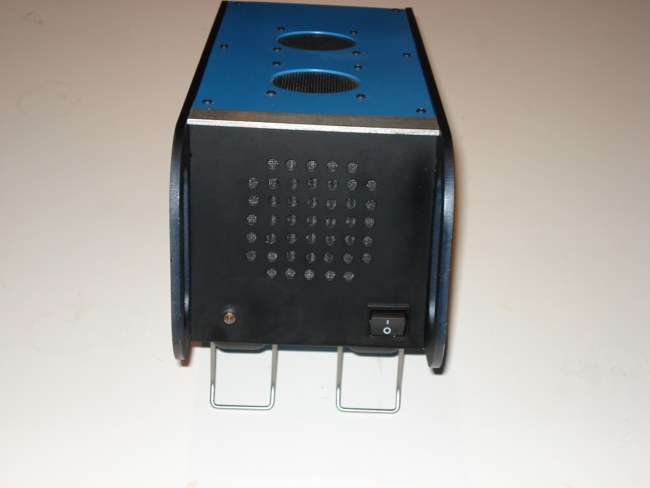

Front Side Power Supply with built in speaker for TR7



Obenseite des Netzteils


Top Side Power Supply




Innenleben Netzteil TR7 Obenseite


Top View  of Inside of the Power Supply TR7

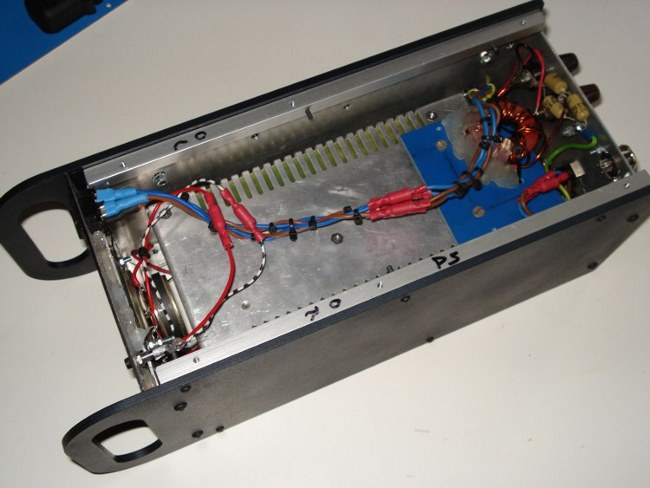

Innenleben Netzteil TR7 Untenseite


Bottom View of the Inside of the Power Suply TR7



Hintenseite Netzteil

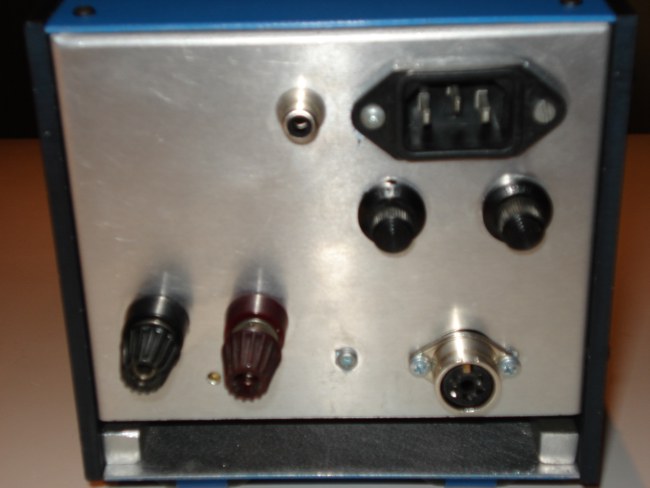

Rear Side Power Supply TR7

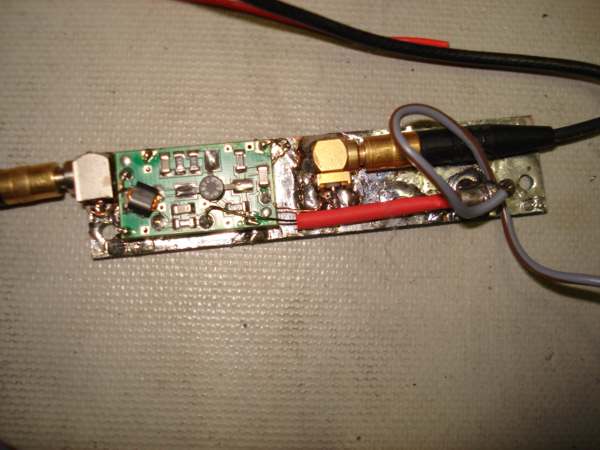

20 dB Pre amplifier for driver 100 Watt Mosfet PA +10 dBm out


20 dB Vorverstärker für Treiber 100 Watt PA +10 dBm ausgangs Pegel

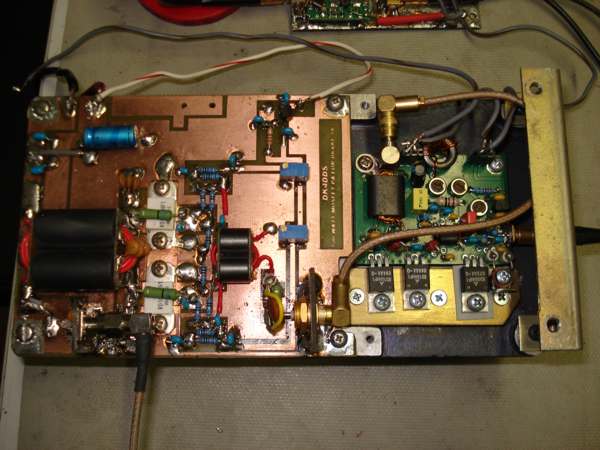

100 Watt Mosfet PA for TR7


100 Watt Mosfet Endstufe für TR7

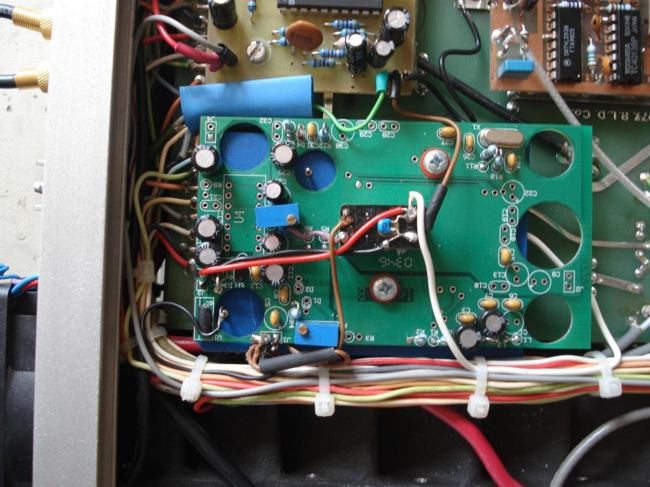

DSP Eingebaut

DSP Built in





DAFC Eingebaut

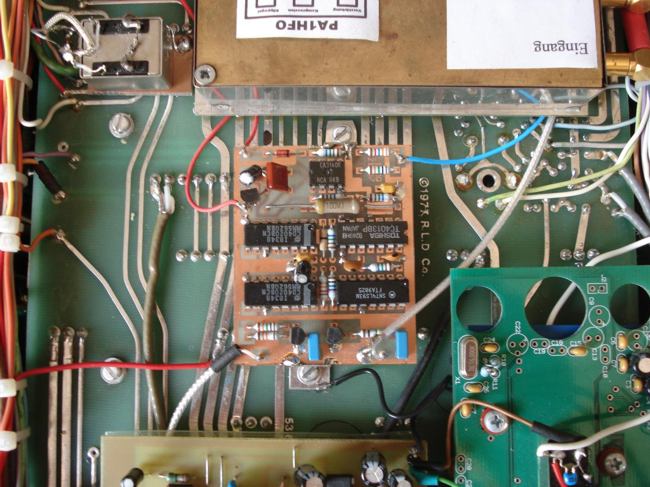

DAFC Built in

Ciruit Digram DAFC



TR7 PTO Replaced by DDS VFO
tr7_front_ready_for _dds_assembly.jpg (53362 Byte) dds_tr72_built_in.jpg (78675 Byte)
TR7 PTO Ersätzt durch DDS



TR7 PTO Replaced by DDS VFO-2
TR7 PTO Ersätzt durch DDS-2



First Full System Test with DDS and New Display

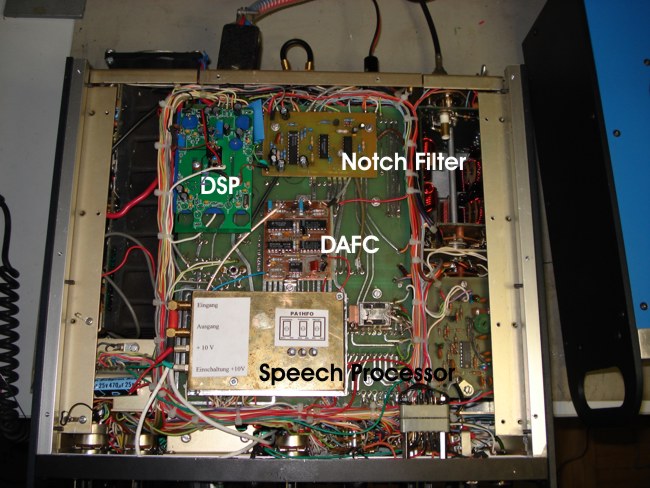

Innnenleben mit die neue Modulen unten in TR7

Bottom Side TR7 almost finished



Sprachprozessor Bauteileseite

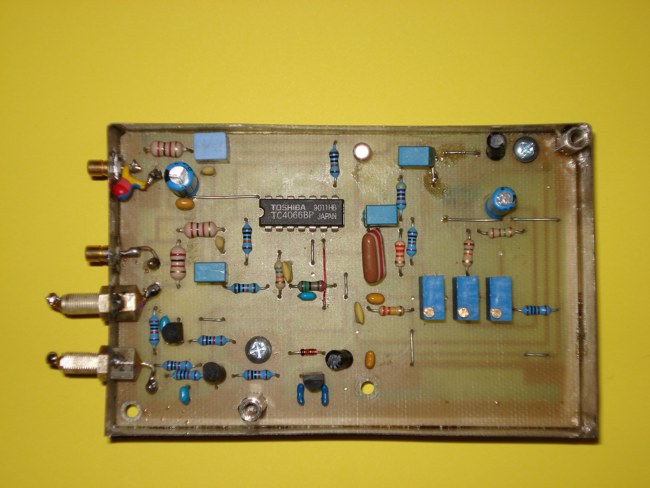

Speech Processor Component Side

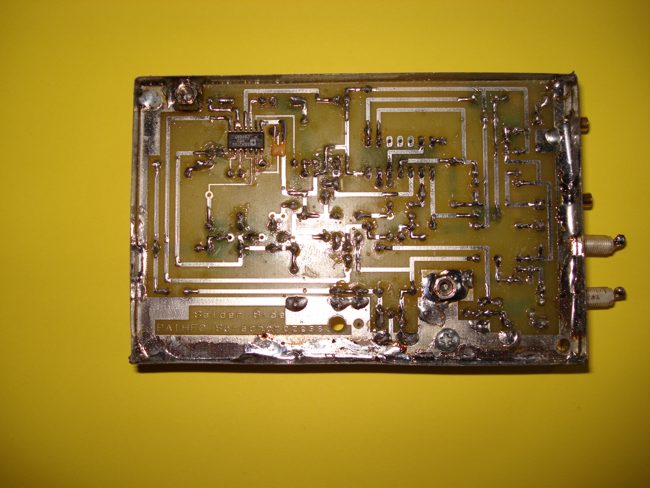

Sprachprozessor Lötseite

Speech Processor Solder Side




Für Speech Processor Geänderte Transmitter Exiter Leiterplatte TR7

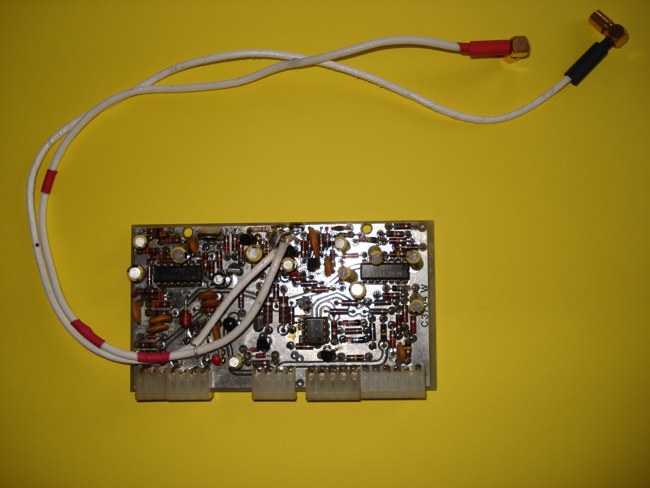

Transmitter Exiter Board TR7 Modified For Speech Processor





Notchfilter Original Design PA0CHN

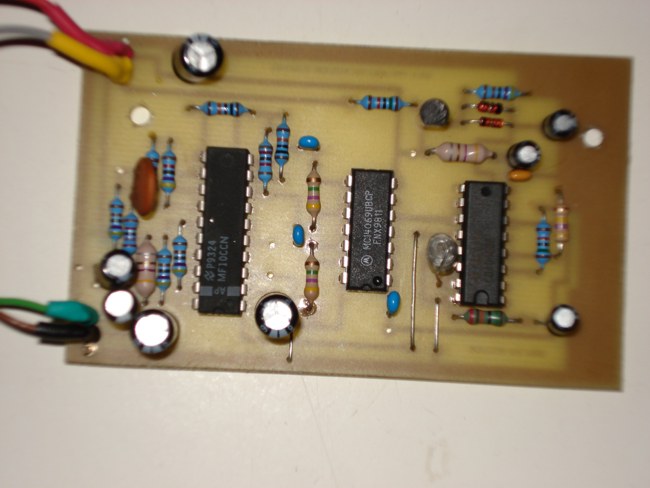

Notch Filter Component Side

Circuit Diagram Notch Filter/Schaltbild Notchfilter

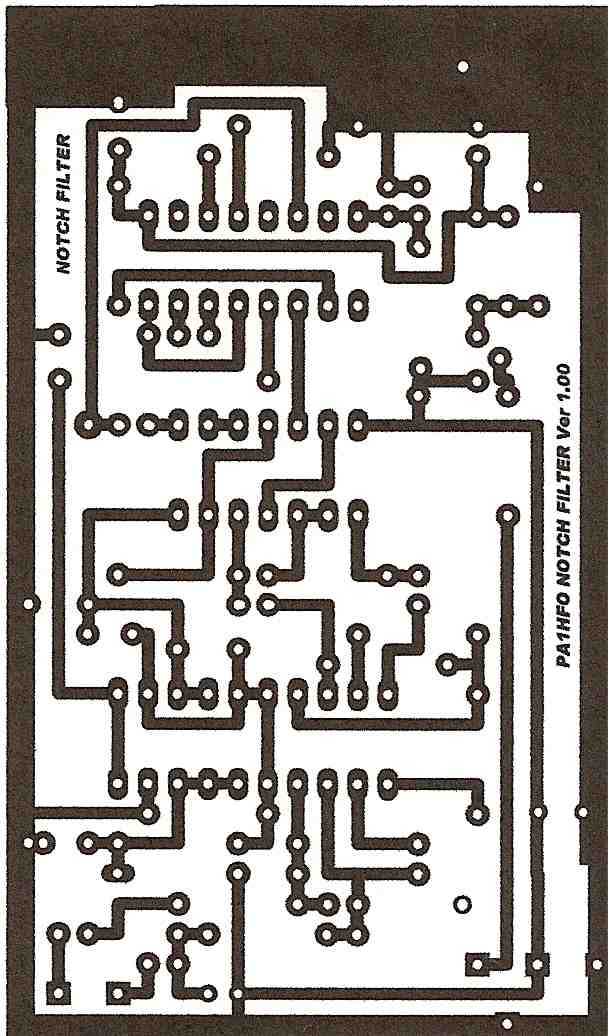

PCB Notch Filter

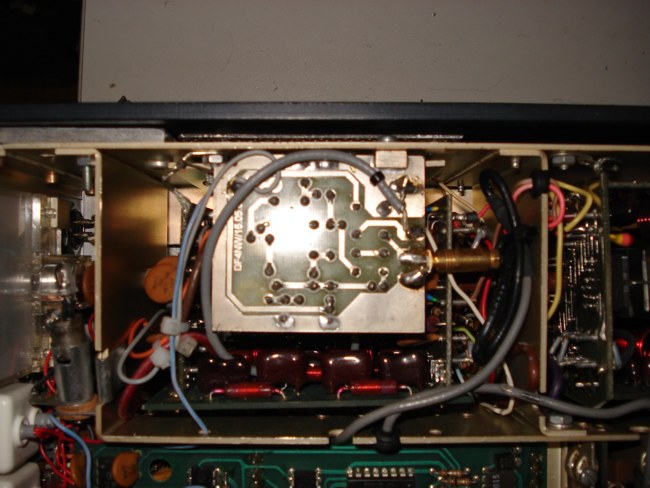

LNA Eingebaut (Low Noise Amplifier)

LNA built in (Low Noise Amplifier) pre amplifier

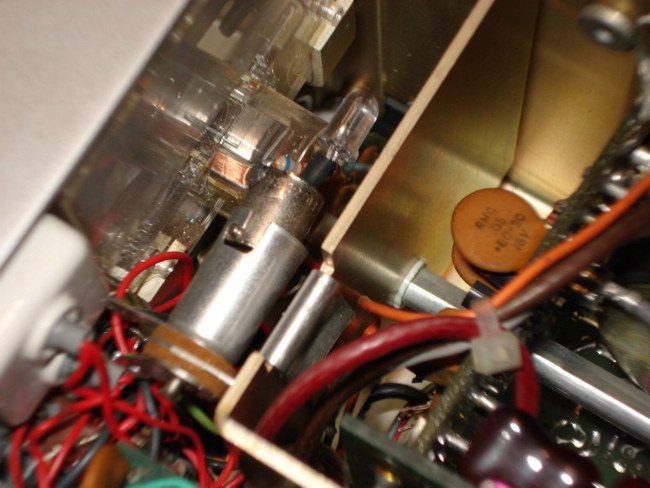

LED Hintenbeleuchtung vonn das S-meter

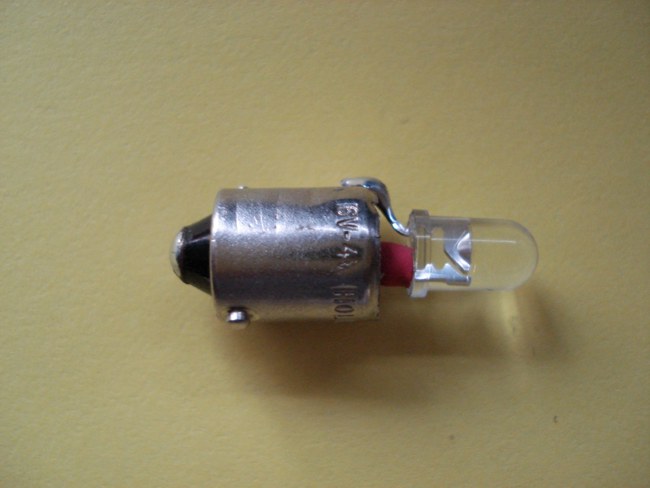

LED backlight for  S-Meter TR7

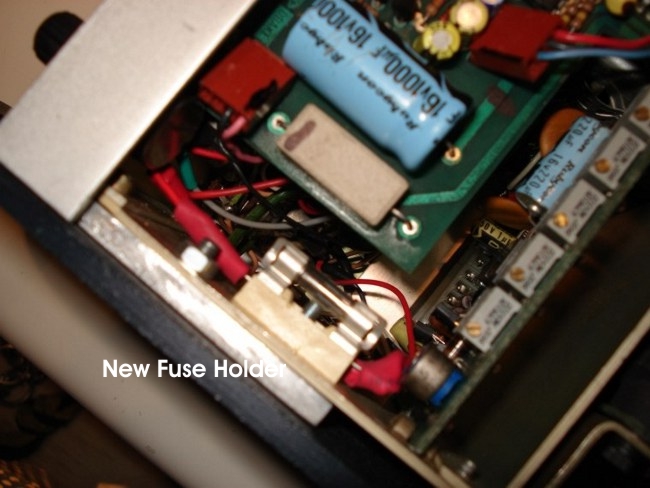

Orignal Sicherungshalter ersätz durch ein Sicherungshalter 5 x 20 mm

Fuseholder & Fuse replaced by a 5 x 20 mm Fuseholder




Neu seite Wände

New Side Panels





Erhöhung von TR7

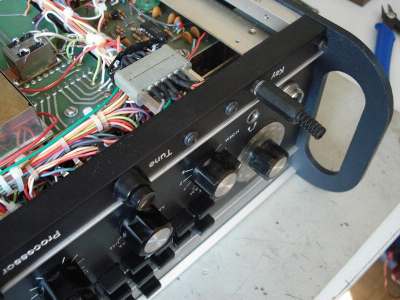

Front Exstention



Front subassembly
front_panel_sub_assembly front_view.jpg (13984 Byte)

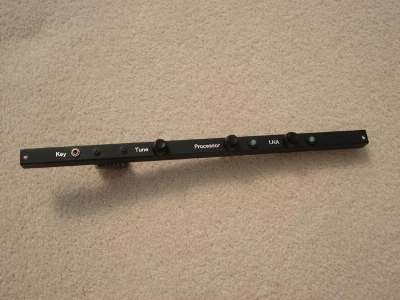

Frontplate SubAssembly




Erneute TR7 im Anbau

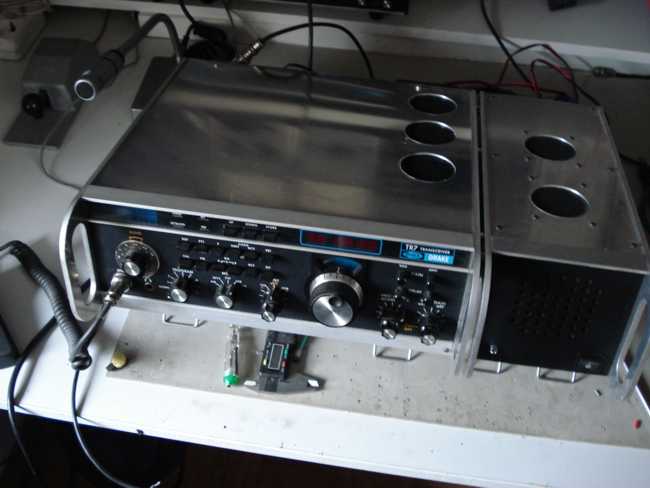

Renewed TR7 under construction



TR7 fertig


TR7 finished

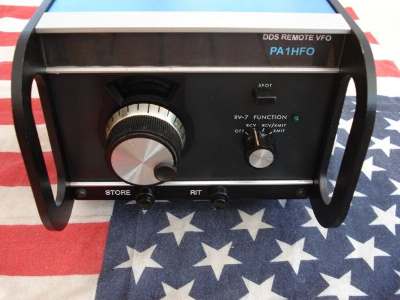

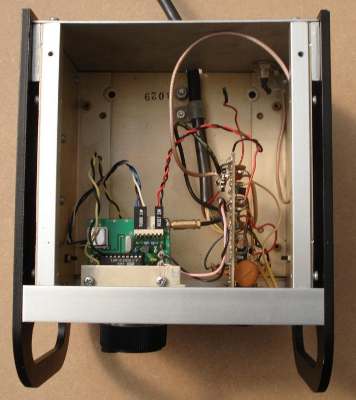

PTO ausgetauscht durch DDS Platine im RV7

PTO RV7 replaced by DDS PCB



RV7-DDS fertig

RV7-DDS finished
