TR7 CONCEPTS FOR DRAKE TR7

On these page´s you will find some concepts to improve your Drake TR7 transceiver. To print and view the cicuit diagrams and pcb layouts  optimal we advise you to down load and install the listed original viewers below.
The circuit diagrams are also available for down load in PDF format.The showed drawings on this page are in jpg format.

You can find these files also at the Site of Abacom www.abacom-online.de

Abacom is a German developer of PCB Layout and   Schematic Editor Software.

Down Load and install Viewer PCB Sprint Lay Out 5.0 to View and Print the PCB Layouts listed on this page
Down Load and install Viewer  sPlan 7.0 to View and Print the Circuit Diagrams listed on this page







Modern High Current Switch Mode Power Supply for TR7

offers:

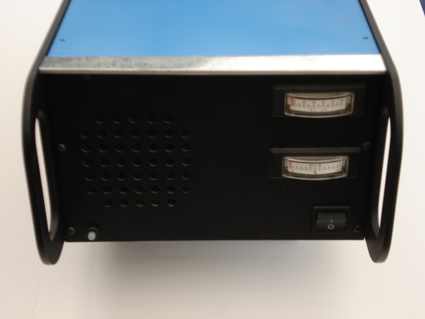

  • Small, light Power Supply built in to modern styled housing in the same style of the new designed TR7
  • Using Professional Mean Well PSP 600-15 Switch Mode Power Supply
  • Power Supply has built in Over Voltage and Temperature Protection
  • Built in Power Factor Compensation
  • Offers 40 Amp at 13.8V for future extensions (250 Watt Mosfet PA & Transvertors)
  • Original Fan replaced by very Silent Temperature Controlled   one
  • Built in Current Measurement by shunt and Moving Coil Indicator
  • Voltage Measurement with Moving Coil Indicator
  • Using Professional High Power Neutrik Connectors

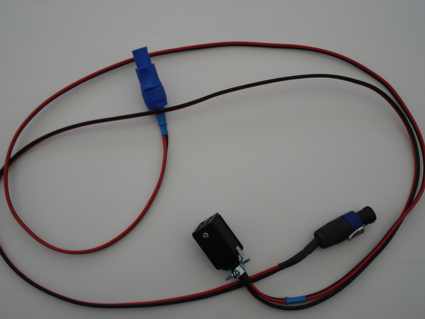

  • Splitted well protected Power Cables, High Power for PA and Low Power for TRX

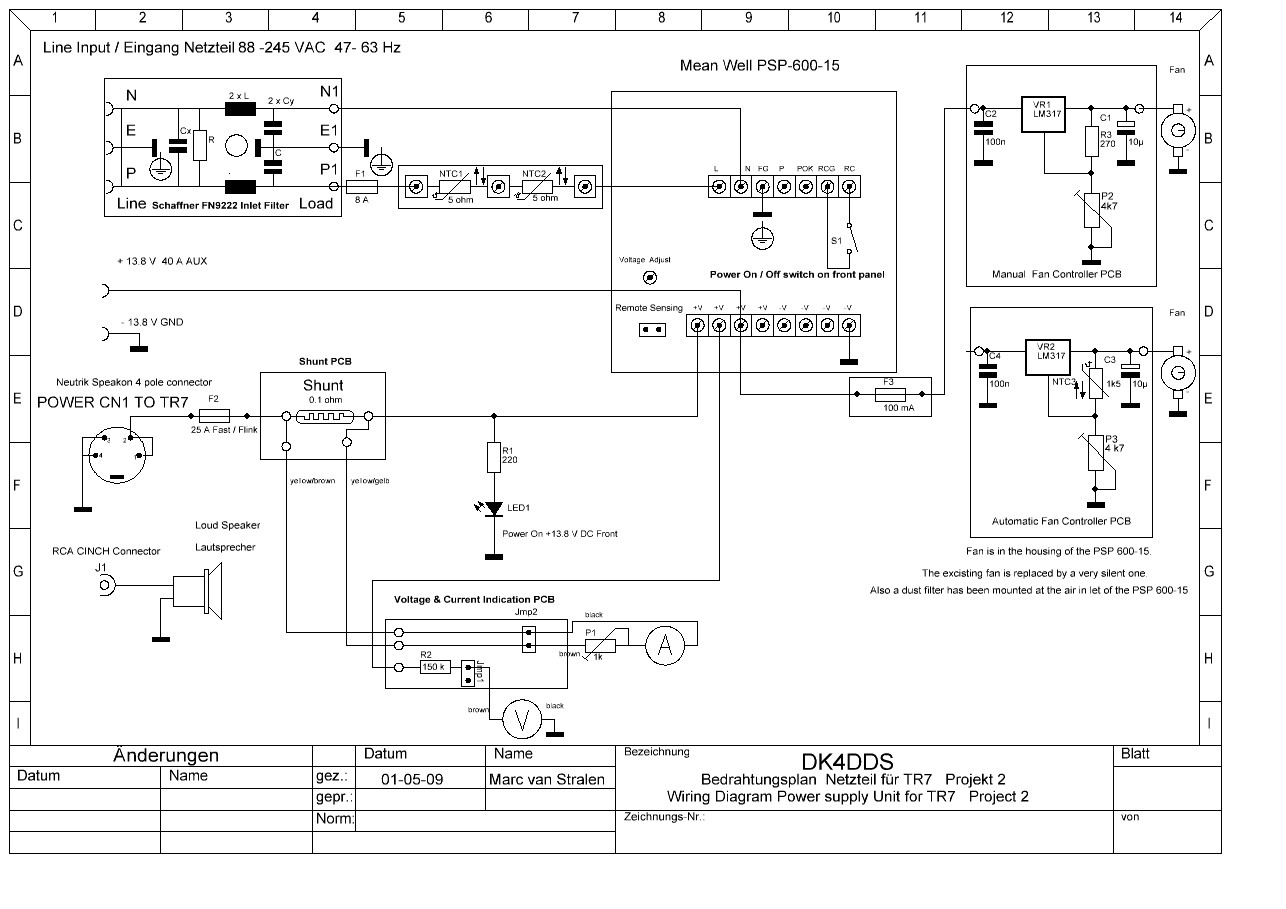

Down Load Wiring Diagram Power Supply in sPlan 7.0 format
Down Load Wiring Diagram Power Supply in PDF Format






Notch Filter for Drake TR7 Design by PA0CHN

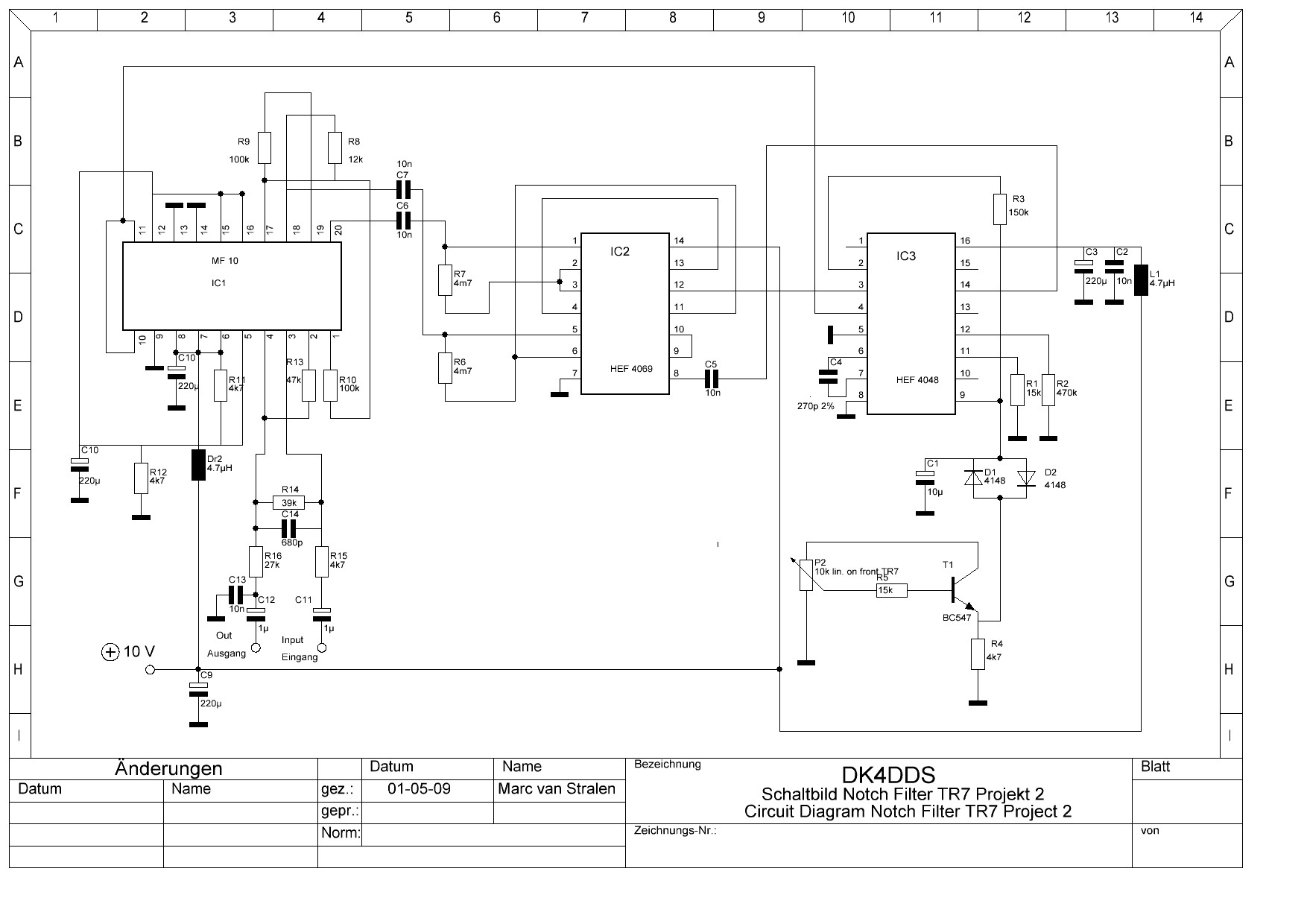

Circuit Diagram Notch Filter TR7 in PDF
Schaltbild Notchfilter für Drake TR7 in PDF
PCB for TR7 Notch Filter in Sprint Lay Out Format
Component Placement Notch Filter in PDF Format
Bestückungsplan NotchFilter für TR7 in PDF Format

Original Design by PA0CHN







Speech Processor Drake TR7








Schlatbild Geänderte Transmitter Exiter Board TR7
Circuit Diagram Modified Transmitter Exiter Board TR7
Circuit Diagram Speech Processor TR PDF Format
Schaltbild Sprachprozessor TR PDF Format
Component Placement Speech Processor Board
Bestückungsplan   Sprachprozessor

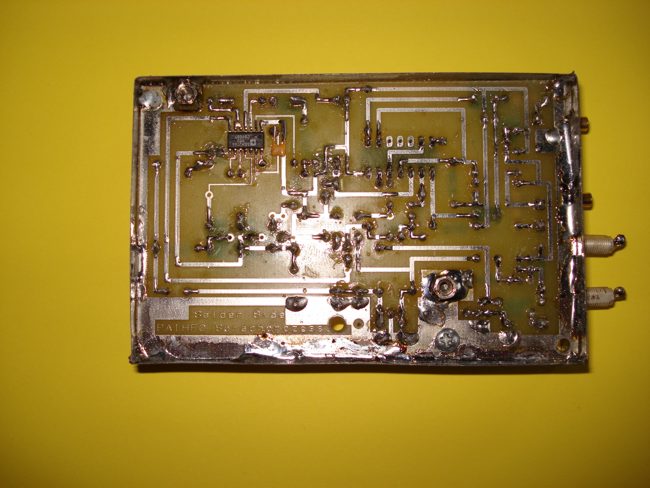

PCB-Speech Processor TR Sprint 5.0 Format
Leiterplatte Sprachprozessor
