NR      MODE       CALL       S/R       LOC          DATE        ANTENNA   KW       MYRIG
Not counted for initial (same stn wkd before):
RA1AX/3=stn of RA3AQ, RA0FU= RA0FCA(same stn), UA3MSF (wkd fm RV3IG-stn, AO6VQ=EA6VQ, DL50SOP, DL0DBR=DL9MS, YO9FRJ=YO4FRJ (still same QTH), RA6AX=stn of RN6BN, OK1CU=OK1UGA(same stn), SM2A=SM2ILF
DM1CG & DB0GSN = QTH of DF7KF when JO30GU, IY1GNM=IK1UWL, RW9USA wkd UA9UHN from same stn before
K9MRI/P he was testing his /p-setup from home-QTH that time(EN70) RW7A=rig of RN6BN, RA6A=exRA6DA
EB3DGV wkd frm QTH of EA3BB, UP20EME=UN9L

graves_wsjt
The moonecho of the Graves-Radar from JN27SI (east of Dijon)
This 4x8el (4m boom) was up from 2008-2010 in JO60UX
2x9el (5m boom) with polarity rotation since 05/2010 in JO61TB
2x9el (5m boom) with polarity rotation since 05/2010 in JO61TB
Power at the antenna:
CW: 550W    Digi:  350W (save) - 450W (a few min only - blower too weak )

homemade SSPA 600W since 2012

TRX was a IC275H wich died in july 2011 after 20 years. Running a IC275E now.

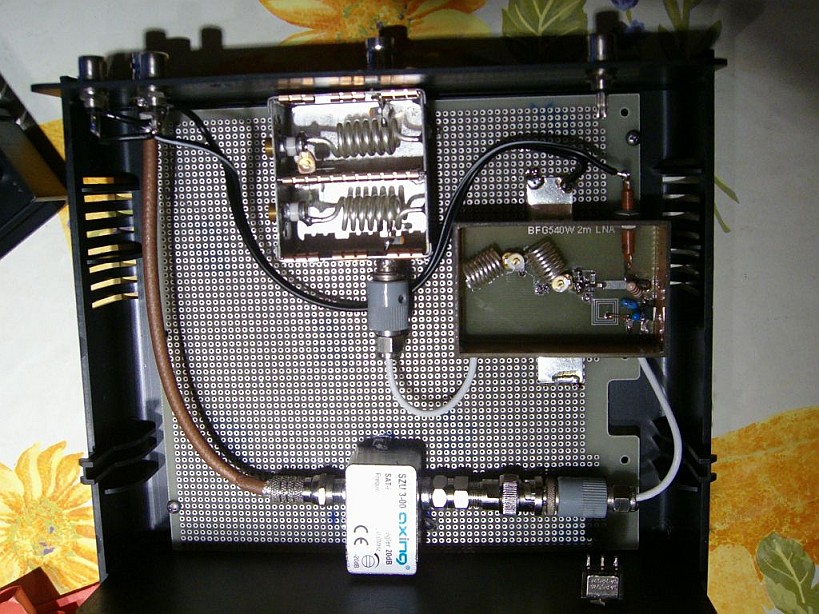

high Q filter and 2nd stage (The IC275 producing some weak birds into the IF, thats the reason for the extra gain)
7/8 cavitypreamp MGF1303 (0.7dB nf)
7/8" cavity-preamp
filter & 2nd  stage
( groundgain only at very high declinations > +20  deg - QTF 300 and more at moonset)
elevation sensor and display unit (I'm very pleased with this sensor after some troubles with the LIDL-sensor)
elevation-sensor
AMATEUR-RADIO DX on 144MHz
e-mail / disclaimer / impressum
4xBF998
Spare-preamp
4xBF998 parallel
QSO with a single medium sized antenna and moderate power on both sides -24/-22 !!
11el 6.6m boom (own design) at the former QTH in JO60UX

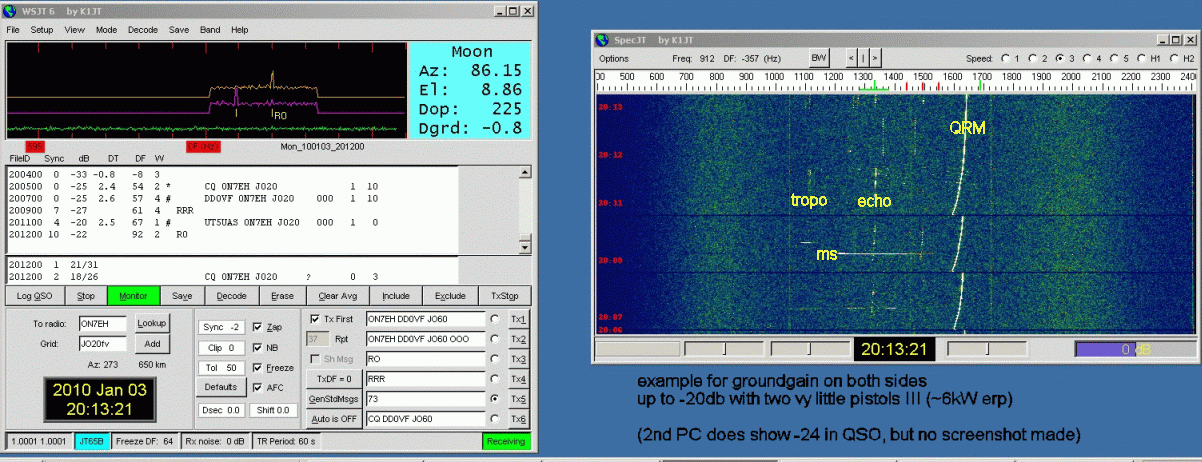

on7eh wkd with 1x11el
( groundgain at MR QTF 080°-095°)

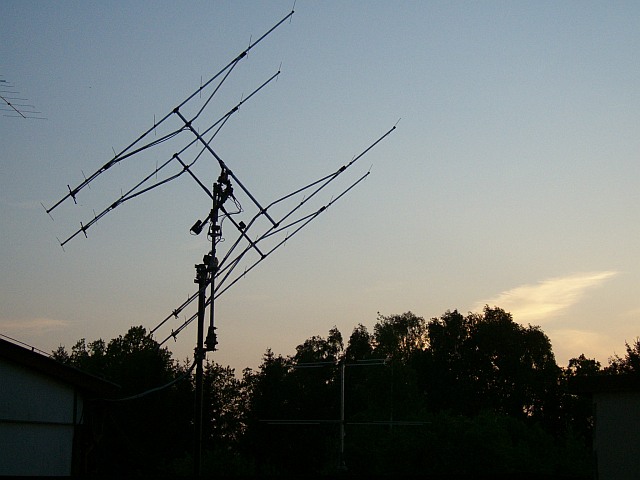

This 4x8el (16.0dBd)was up from 2008 to 2010 in JO60UX

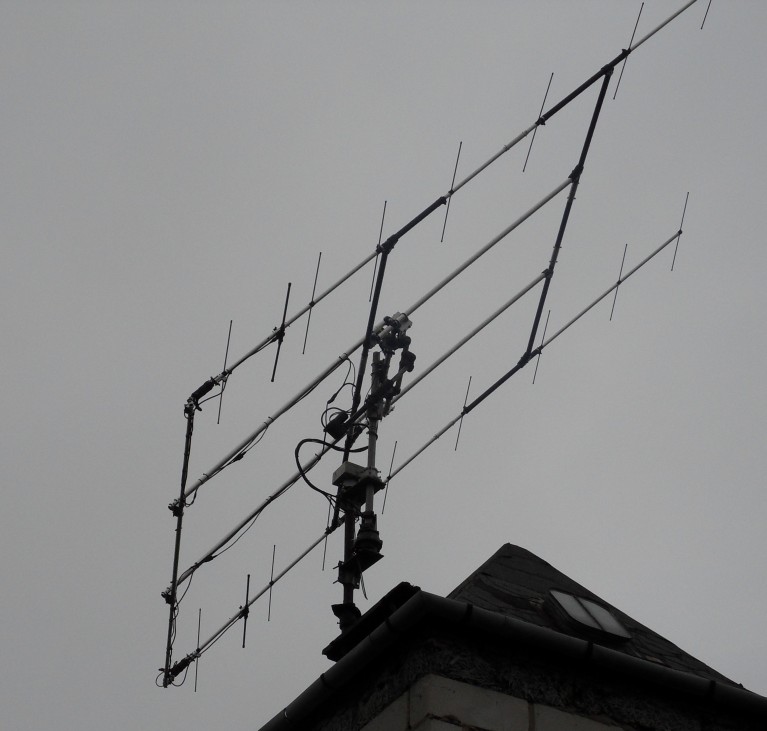

2x9RP (rotatable polarity) in Hpol
since may 2010 in JO61TB
2x9RP (rotatable polarity) in Vpol
since may 2010 in JO61TB
© DD0VF 2012-01-27
                Smallest stn rcvd with 2x9:
VK3KH at -25 with 1x3wl and 120W abt 2kW erp only (seen on 3 different days)!
DXCC 2m #73
DXCC 2m #73
EME QSOs at all: 946
map65iq_20_11_11
