ANTENNA X233605XL2QAG

PERFORMANCES (loss included, KF2YN correction applied)

(dBi)

F/B

(dB)

F/Sh

(dBi)

F/Sv

(dBi)

Hor

(◦)

Ver

(◦)

Temp

(◦K)

Tlos

(K)

G/T

(dB)

18.80

37.86

18.04

18.59

24.5

20.6

16.2

3.6

+6.70

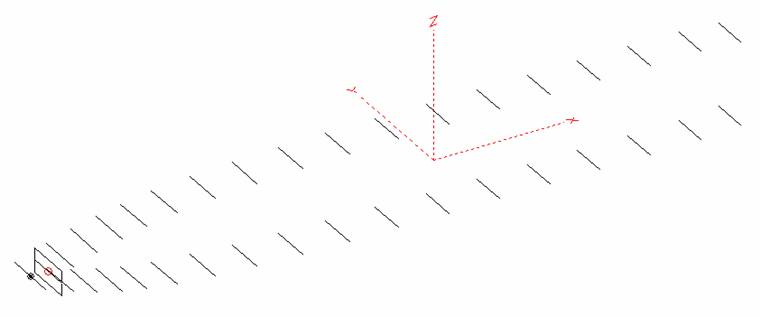

DIMENSIONS
	Ref	De	D1, D2	D3,D4	D5,D6	D7,D8	D9,D10	D11,D12	D13,D14	D15,D16
Position	0	35	59	106	155	204	265	341	424	515
Length	109.5	92.5	96.0	94.0	93.0	90.5	90.5	89.0	87.0	86.0
Height	0	±24.0	±24.5	±39.5	±52.0	±62.0	±70.0	±77.0	±82.0	±85.0
	D17,D18	D19,D20	D21,D22	D23,D24	D25, D26	D27,D28	D29,D30	D31,D32	D33,D34
Position	608	706	806	906	1006	1105	1205	1306	1385
Length	84.0	83.0	81.0	80.5	80.5	80.5	79.5	78.5	78.5
Height	±86.5	±87.5	±88.5	±88.5	±88.5	±88.5	±88.5	±87.5	±82.5
Remark	All elements made of Al rods Ǿ5 mm, except radiator which is Ǿ2.5 mm CuAg All dimensions given in milimetres No boom correction included.

CONSTRUCTION OF RADIATOR

Material: Silverplated copper wire Ø= 2.5 mm

H = 92.5 mm

V = 24 mm

DIAGRAMS

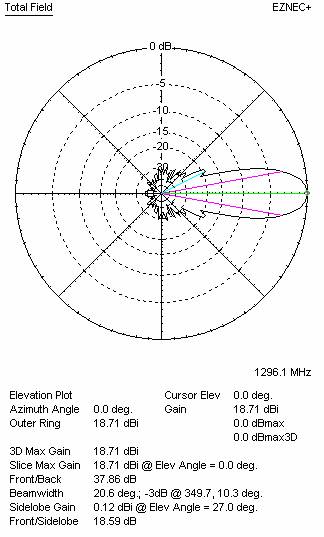

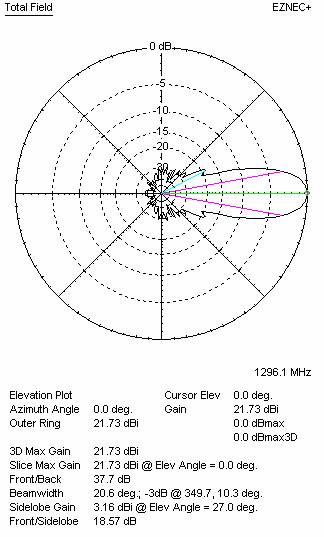

Horizontal and verticall pattern in free space, no loss condition

	WORKING CONDITION
Frequency bandwidth for SWR=1.5 (MHz)			Z (Ώ) at 1296.100 MHz	SWR at 1300.000 MHz
Lowest		Highest
1238.000		1330.100	198.5	1.01:1

SWR DIAGRAMS (loss included for Al)

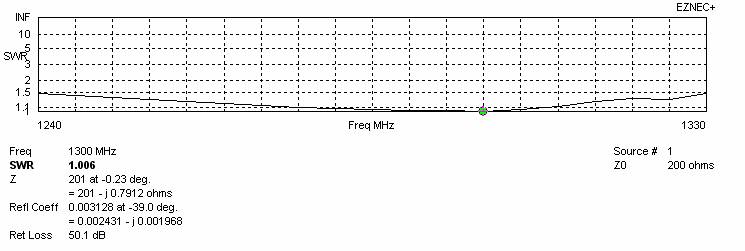

SWR curve for amateur bandwidth 1296 – 1300 MHz

Frequency bandwidth for SWR = 1.5

STACKING (ALL DATA GIVEN IN ACCORDANCE WITH KF2YN CORRECTION, LOSS INCLUDED)
RECOMMENDED STACKING DISTANCES
		Two antennas vertically (mm)		Two antennas horizontally (mm)			Four antennas in H-stack (mm)
Horizontal distance				680			680
Vertical distance		660					660
TWO ANTENNAS STACKED VERTICALLY
DISTANCE (mm)	G (dBi)		TA (K)		Tloss (K)			G/T (dB)
660	21.78		15.8		3.6			+9.78

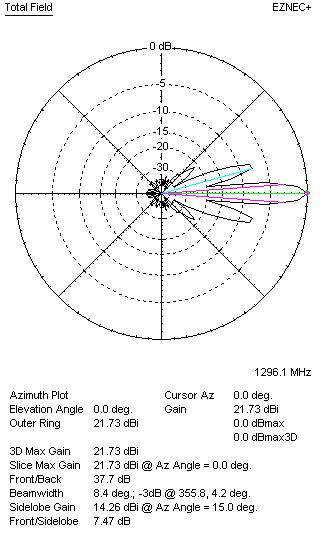

Two antennas stacked vertically
TWO ANTENNAS STACKED HORIZONTALLY
DISTANCE (mm)	G (dBi)		TA (K)			Tloss (K)			G/T (dB)
680	21.82		16.1			3.6			+9.74
Two antennas stacked horizontally
FOUR ANTENNAS IN H-STACK
DISTANCE (mm)	G (dBi)		TA (K)			Tloss (K)			G/T (dB)
H = 680	24.84		15.7			3.6			+12.90
V = 660

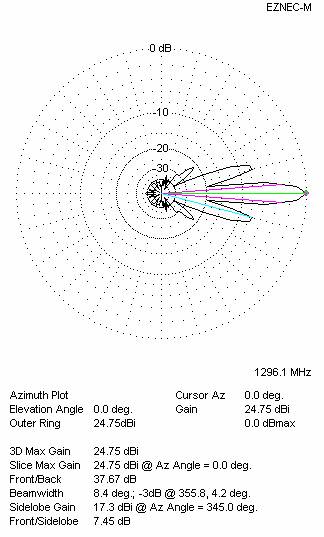

Four antennas in H-stack
