ANTENNA X23006XL1Q

PERFORMANCES:

No of ele

L (mm)

G (dBi)

F/B (dB)

F/Sh (dBi)

F/Sv (dBi)

Hor (◦)

Ver (◦)

Temp (◦K)

G/T (dB)

Tlos

(K)

30

9065

17.81

36.88

15.45

16.62

26.6

22.6

218.7

-5.59

5.4



WORKING CONDITION:

Frequency for SWR=1.5 (MHz)

Z (Ώ)

at 144.100 MHz

SWR

at 145.000 MHz

Lowest

Highest

Bandwidth

140.000

147.100

7.100

198.9

1.08:1



DIMENSIONS:



Ref

De

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

D11

D12

D13

D14

Pos

0

355

529

932

1421

1732

2276

3012

3746

4518

5306

6064

6822

7612

8384

9065

Length

1010

784

929

927

909

885

899

895

893

883

883

877

875

873

869

851

Height

0

240

180

330

440

510

570

650

725

785

805

815

835

835

795

755

Dimensions given in milimetres - Diameter of elements 6 milimetres - No boom correction included.

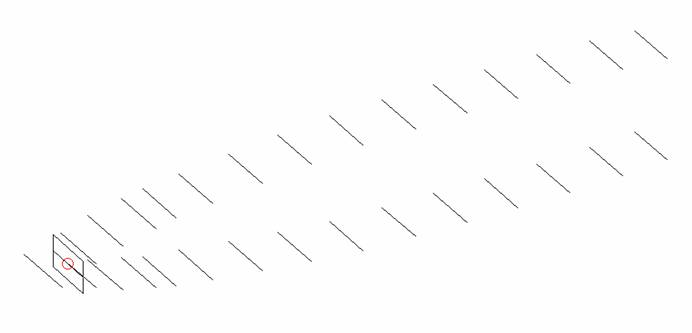

CONSTRUCTION OF RADIATOR

H = 784

V = 240

= 5 mm





COMPARISON (inserted in a part of VE7BQH table, where it belongs according to its boom length)

TYPE OF

ANTENNA

SINGLE ANTENA

FOUR ANTENNAS IN H-STACK

L

(λ)

GAIN

(dBd)

Z

(ohms)

VSWR

Bandwidth

E

(m)

H

(m)

Ga

(dBd)

Tlos

(K)

Ta

(K)

G/T

(dB)

G0KSC 14 LFA

4.30

14.51

47.1

1.22:1

4.24

4.02

20.41

5.5

218.1

-0.82

KF2YN Boxkite 16

4.30

15.85

50.5

1.16:1

5.50

5.10

21.83

6.2

227.4

0.41

InnoV 14 LFA

4.32

14.45

48.6

1.10:1

4.18

3.97

20.34

6.6

215.6

-0.85

X23006XL1Q

4.35

15.66

198.9

1.08:1

5.10

5.70

21.74

5.4

212.8

+0.61

YU7EF 14

4.37

14.48

41.0

2.30:1

4.21

4.00

20.33

8.8

220.0

-0.94

YU7EF 14LT

4.37

13.91

47.8

1.29:1

3.89

3.64

19.60

11.7

211.0

-1.49

K1FO 17

4.40

14.44

27.7

1.25:1

4.24

4.02

20.34

4.9

229.5

-1.12

DJ9BV 4.4

4.41

14.32

38.3

1.36:1

4.27

4.07

20.18

6.6

251.5

-1.68

SHARK 20

4.47

14.34

42.8

1.05:1

4.33

4.10

20.19

3.9

258.5

-1.79

I0JXX 16

4.47

14.36

30.4

1.05:1

4.05

4.05

20.24

8.4

217.5

-0.98

CC17B2

4.49

14.53

200.1

1.20:1

4.27

4.07

20.43

5.9

228.6

-1.01

Z(ohms) - measured on 144.100 MHz

Bandwidth VSWR measured on 145.000 MHz

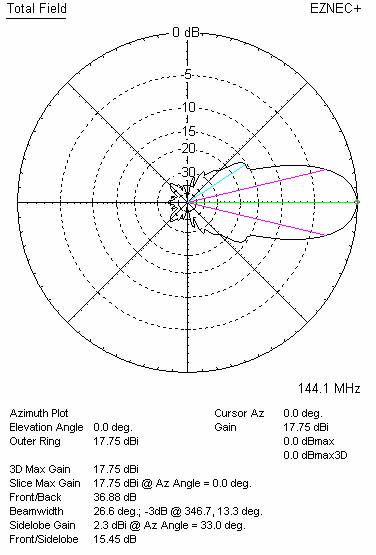

DIAGRAMS (no loss included)

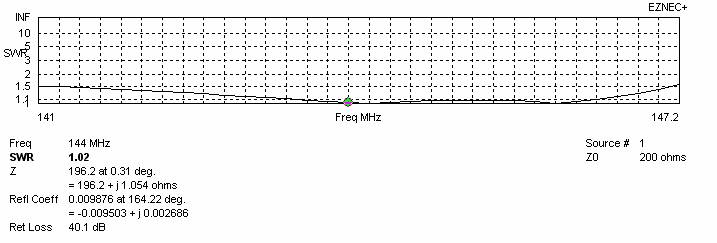

SWR DIAGRAMS (loss included for Al)



BEST DISTANCES FOR STACK

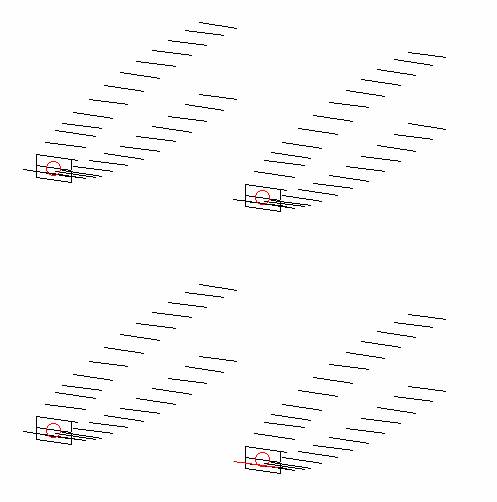

Four antennas in H-stack

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

Remark

4522

5.309

23.74

213.6

+0.44

5.4

Per DL6WU formula

5100

5700

23.89

212.8

+0.61

5.4

For max G/T

4200

5700

23.72

212.2

+0.45

5.4

For lowest temperature

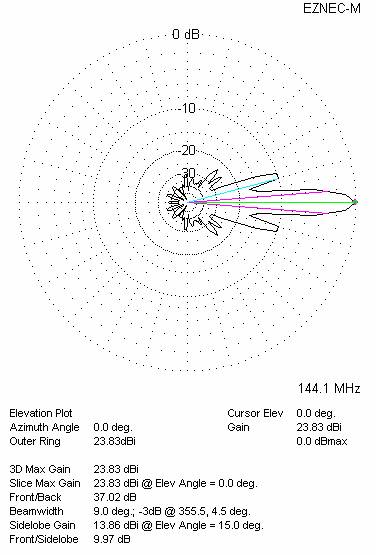

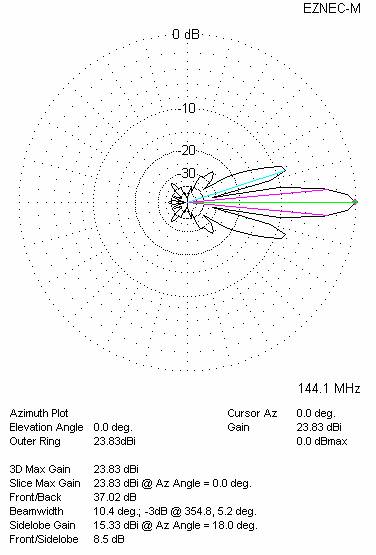

Four antennas in H-stack, H=5.10  V=5.70 metres

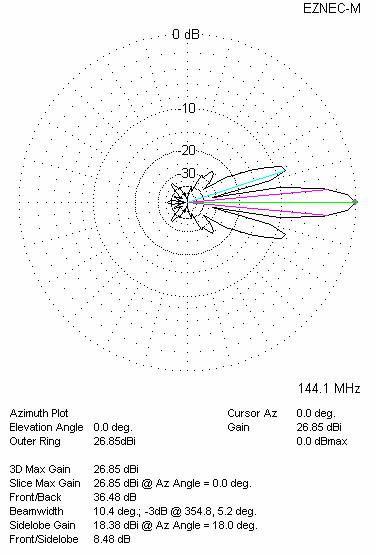

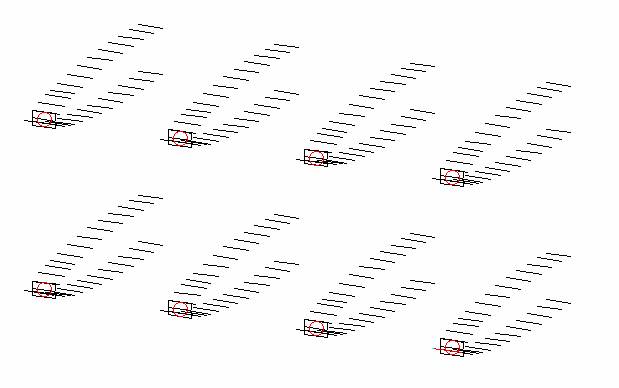

Eight antennas in stack (four in horizontal and two in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

5100

5700

26.92

212.4

+3.64

5.4





Eight antennas in stack (two in horizontal and four in vertical plane)

Horizontal

distance (mm)

Vertical distance (mm)

G

(dBi)

TA

(K)

G/T

(dB)

Tlos

(K)

5100

5700

26.91

212.4

+3.63

5.4
