PSAT-2



Por PY4ZBZ     em 26-06-2019      rev. 31-08-2021



Recepção SSTV

Transmissão PSK31





O PSAT-2 foi lançado em 25-06-2019 por um foguete SpaceX-Heavy numa orbita elíptica baixa com 28 graus de inclinação. Transmite PSK31 e SSTV em 435,350 MHz.

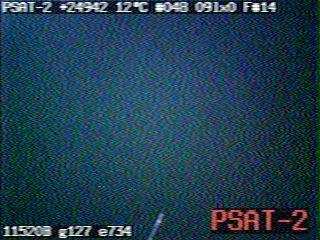

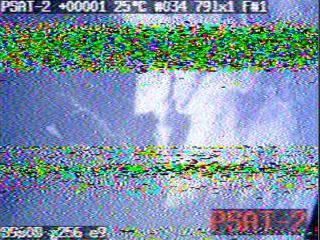

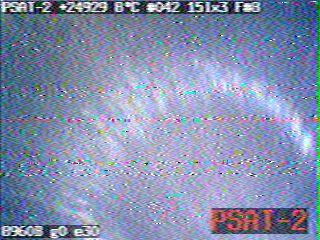

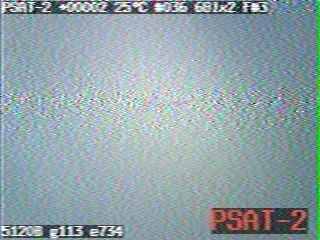

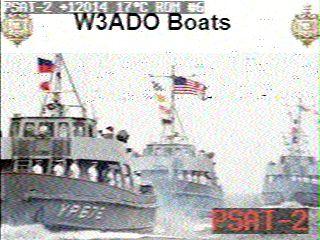

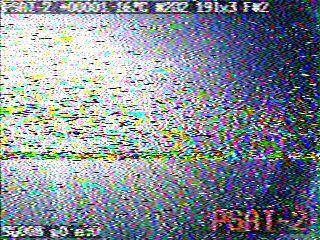

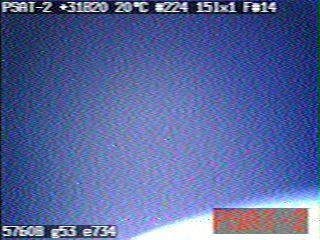

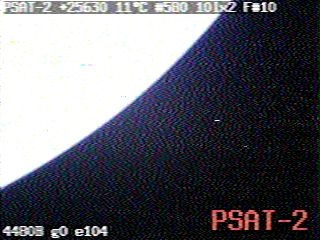

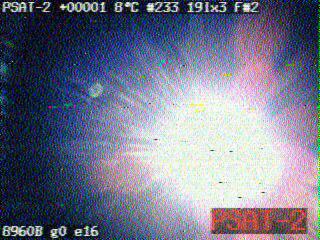

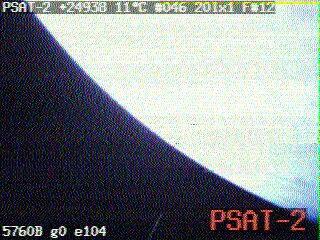

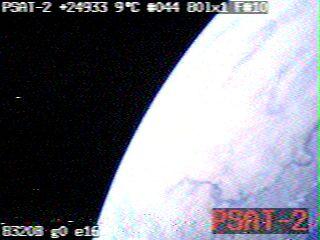

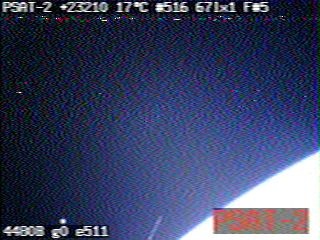

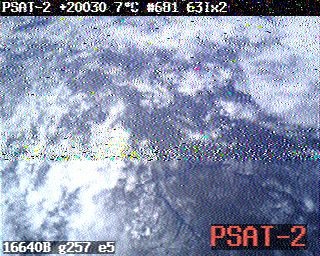

As imagens seguintes foram recebidas por mim em SSTV modo Robot 36 em GH70un:





26-06-2019   17:04 UTC      e        18:44 UTC

[amsat-bb] SSTV from PSAT-2 rx in Brazil

                                                                                                                       Tomáš Urbanec tommypnq at centrum.cz     Thu Jun 27 06:02:45 UTC 2019

Congrats Roland!

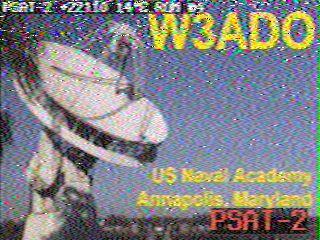

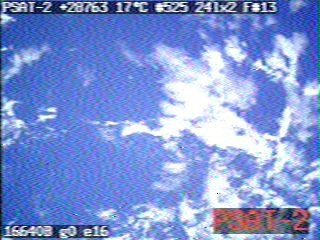

You are the first to succesfully receive SSTV pictures from our camera,
the first one is from the pictures stored in processor before flight,

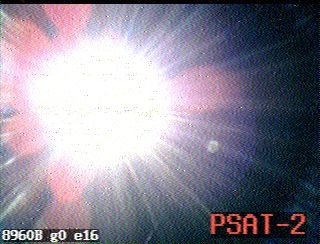

the second is taken after the power up of the camera in space, there
should be 7 more stored, of course, not all would have Earth in field of
view. Later after evaluation it can be commanded to have pictures on demand.

           73! de Tomas OK2PNQ and Ales OK2ALP

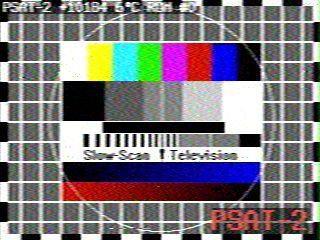

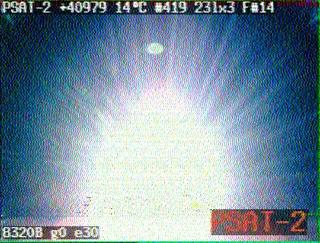

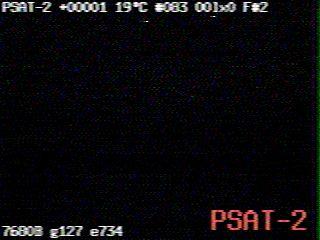

 27-06-2019   17:02 UTC   e   17:06  UTC

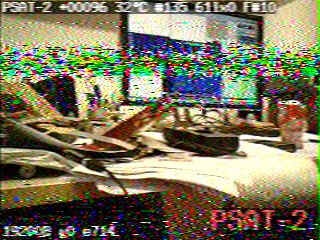

That last pix (and one below) was from the top of my desk back in the summer of 2017!!

The hams at BRNO University delivered the PSK31/SSTV module for PSAT2
on-time and on-budget (free to us).  They worked over the holidays to meet
a very short deadline and delivered in February 2017 for a March
Integration.

Then 2+ years of launcher and FCC delays and it finally got launched now!
I guess whenever I powered it up, it must have been taking pictures.

Im sure it was frustrating for them to see all the launch delays, but each
was only a few months and so there was no time (and risk was too high)  to
send it back to the Czech Republic for them to do any more tweaks...
(Like I got to do on PSAT2 firmware for 2 years!)

Bob, Wb4APR


28-06- 2019  17:06 UTC  e  17:10 UTC

Sinais BPSK31 de 28-06-209 às 17:08 UTC:

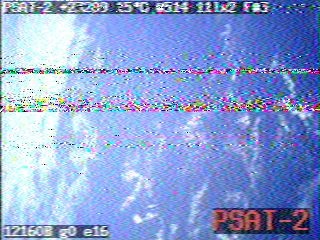

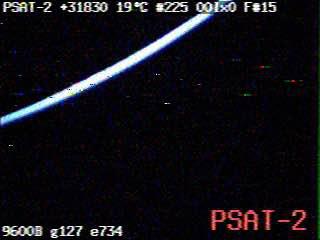

 Mais imagens recebidas do PSAT-2:

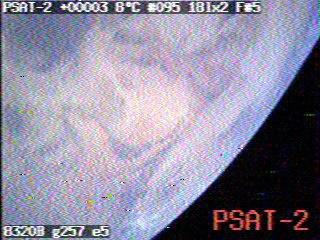

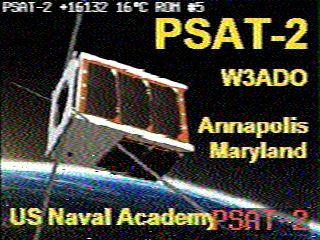

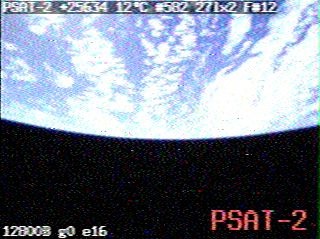

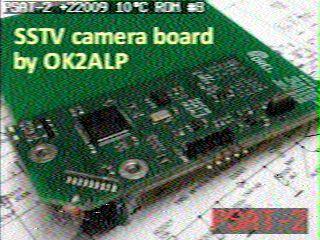

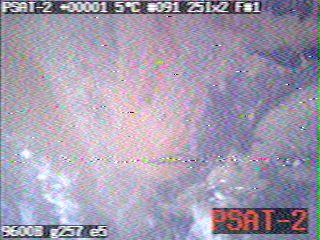

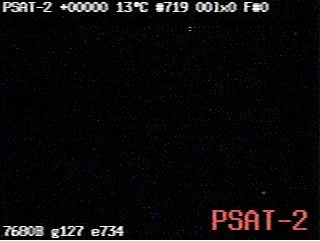

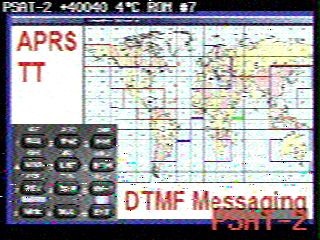

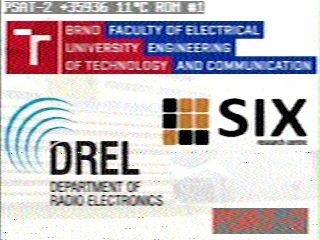

 Pré-gravadas:

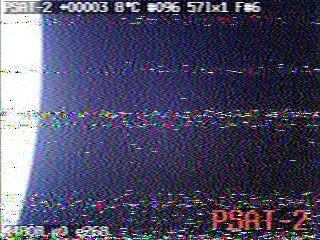

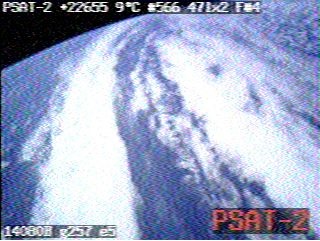

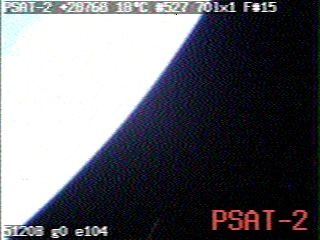

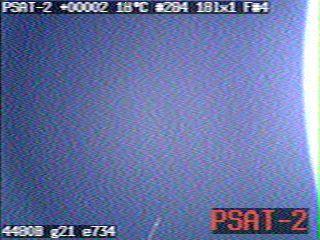

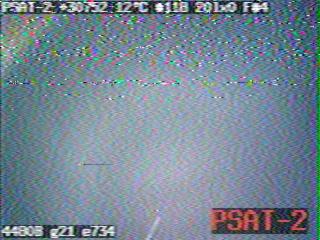

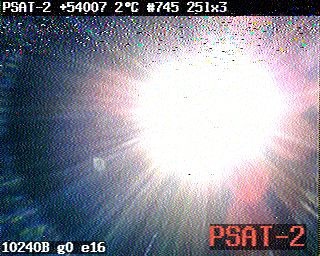

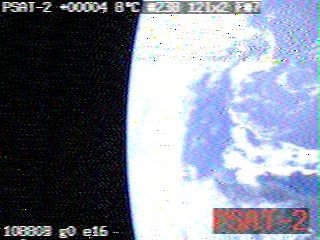

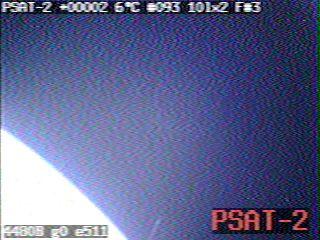

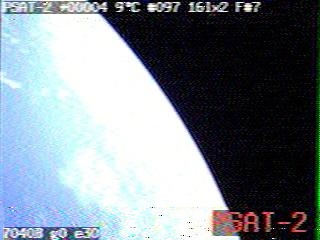

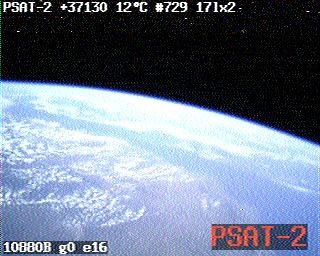

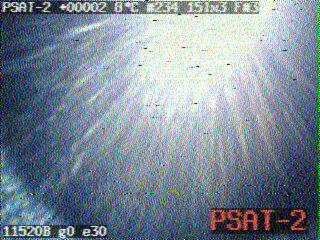

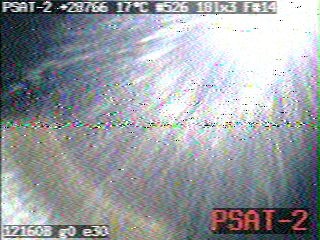

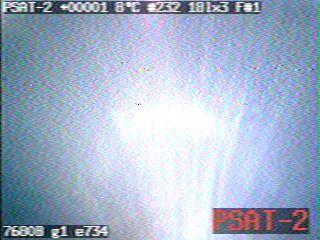

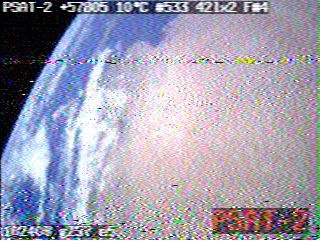

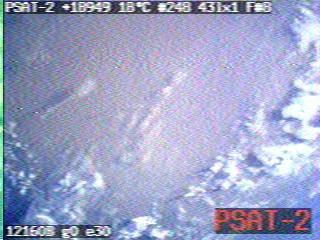

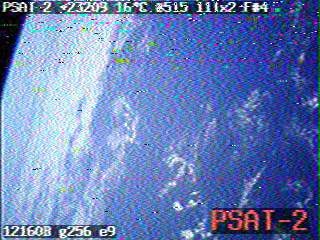

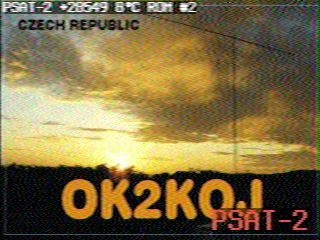

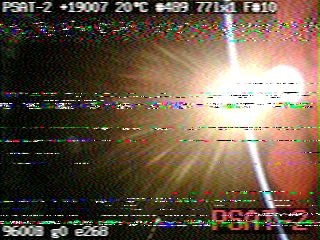

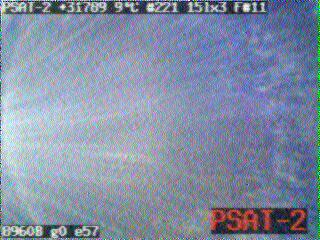

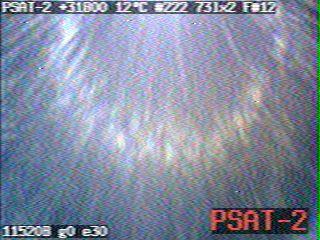

Captadas pela câmera do PSAT-2 :

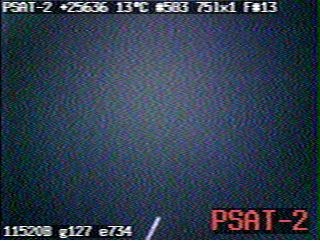

As imagens acima foram recebidas em Robot36, e as 3 abaixo em MP73

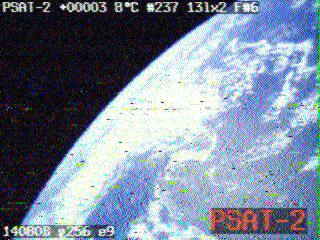

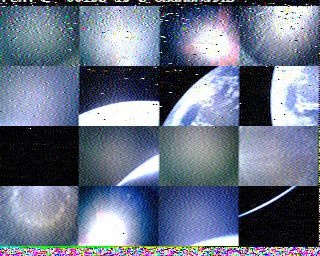

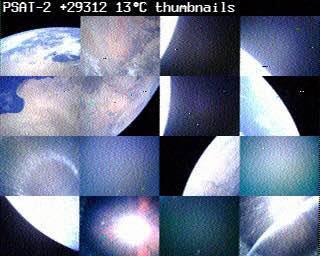

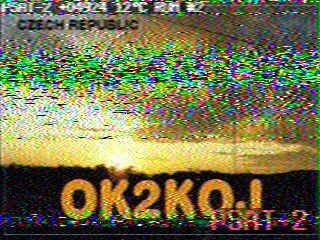

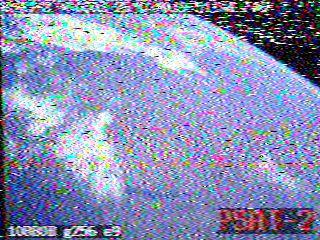

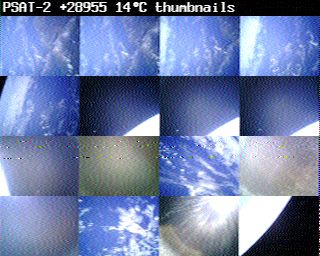

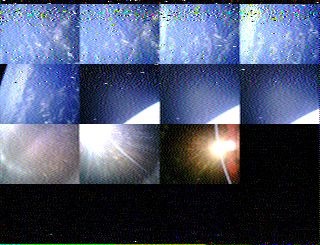

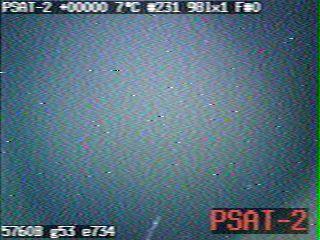

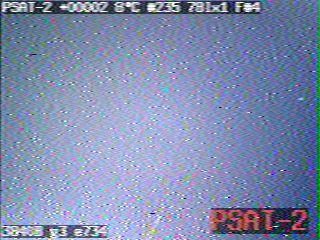

Thumbnails das imagens captadas pela câmera, recebidos em MP73:

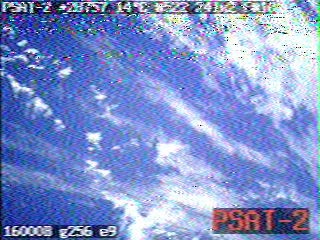

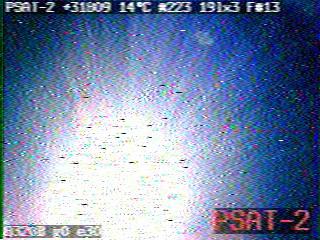

Imagens recebidas pelo Luciano PY5LF:

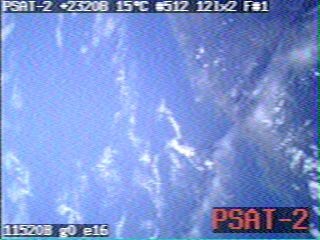

Imagens recebidas por PY5LF e PY4ZBZ :


Retransmissão PSK31 HF/UHF

Em 21-05-2020 conseguimos acionar a retransmissão de sinais PSK31, transmitidos em USB em 10 metros com um dipolo e 25 W,
 com o programa DopplerPSK, e recebidos em FM em UHF e demodulados com o velho programa DigiPan:
Na transmissão foi usado o programa DopplerPSK que gera o sinal PSK corrigido com o Doppler de subida em 10 metros.
 Esse programa gera o sinal PSK em 2 kHz que é transmitido em USB em 29.478,55 kHz (portanto sai em 29.480,55 kHz).

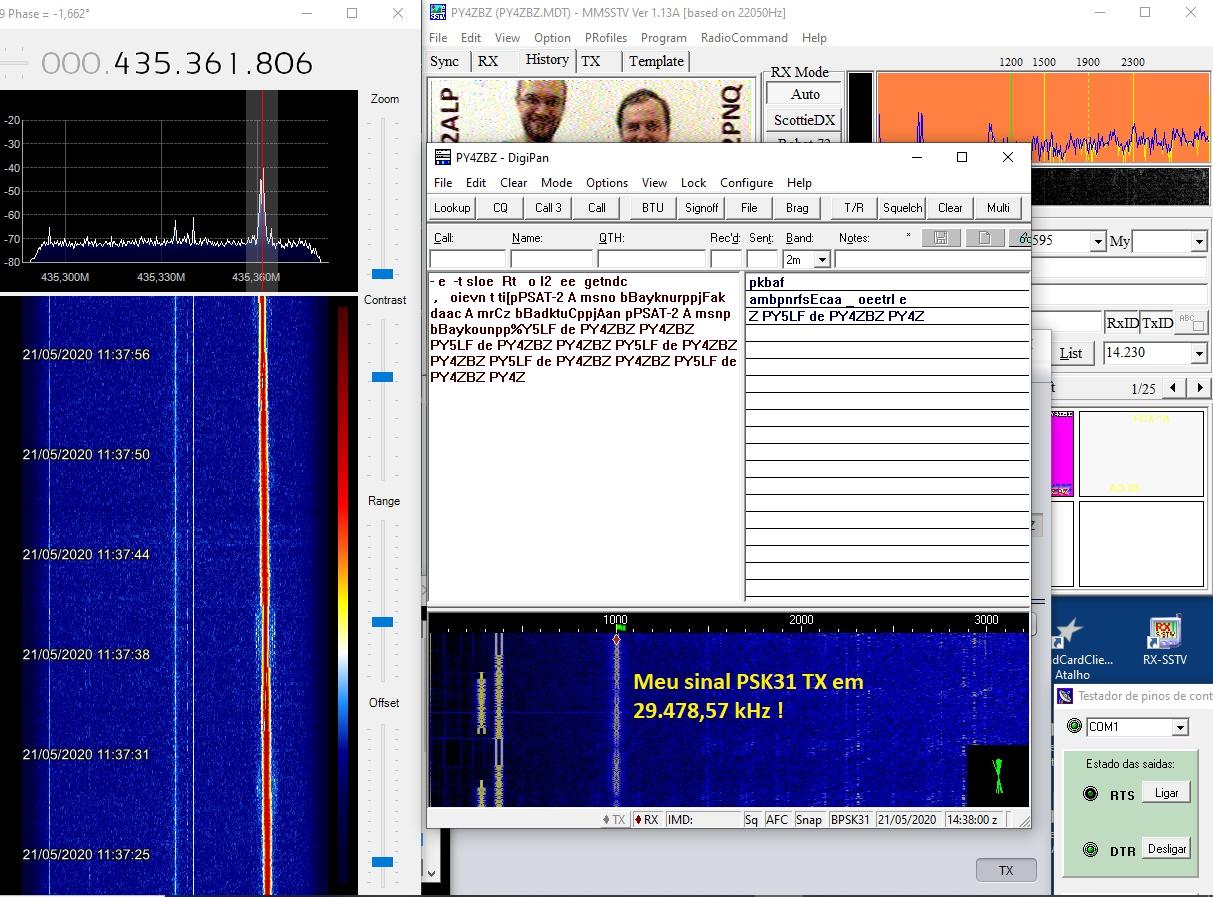

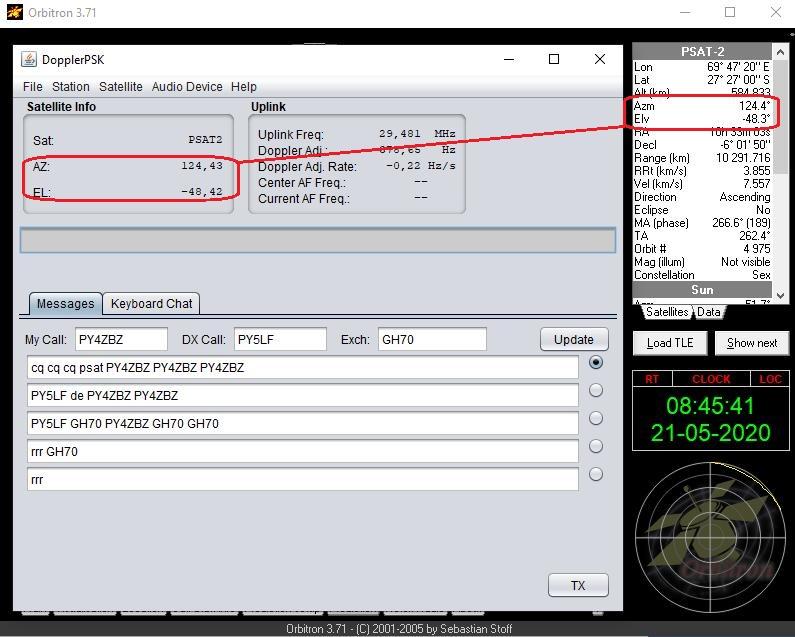

A imagem seguinte mostra o DopplerPSK devidamente configurado e testado com dados do Orbitron:
A imagem seguinte mostra o espectrograma do áudio demodulado em FM recebido em UHF:

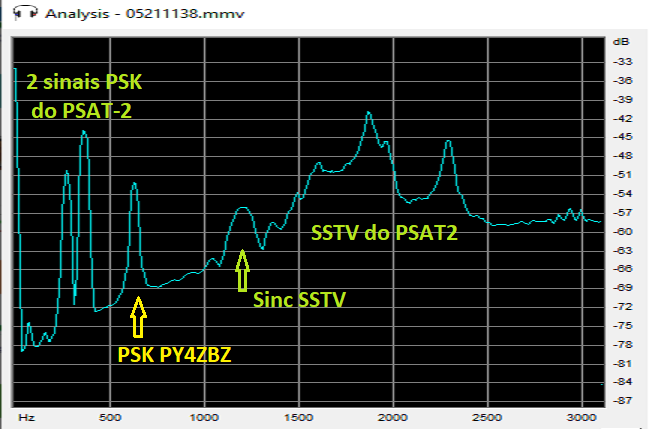

A figura seguinte mostra o espectro dos sinais acima:



73 de Roland PY4ZBZ
