Funkbetrieb in Belize, Zentral-Amerika
radio operation from Belize, Central America

Update 14.03.2013 WORD 2008 12.3.1 für MAC

Rufzeichen / Call Sign
Location: Consejo Shores
near Corozal Town in the
Corozal District
Northern Belize, near Mexican border

QTH Information
Continent: North America
Maidenhead Locator: EK58UL
CQ Zone: 7
ITU Zone: 11
IARU Area: 2
Time Zone: CST Central Standard Time (UTC -6, no Daylight Saving Time)

Belize cell phone +501-621 1200
(+501 is the Country Code, not an Area Code of the U.S.)

Station Information

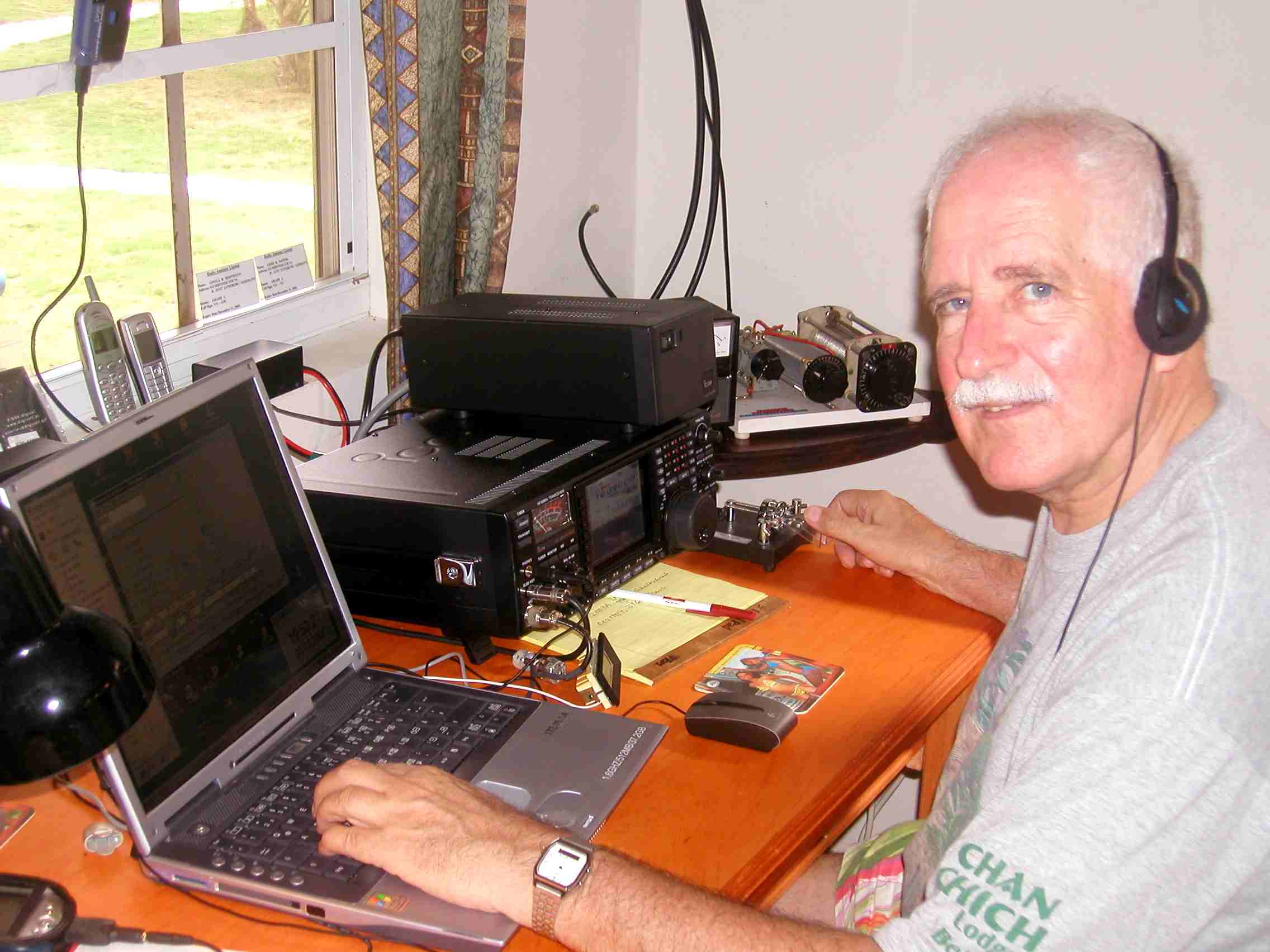

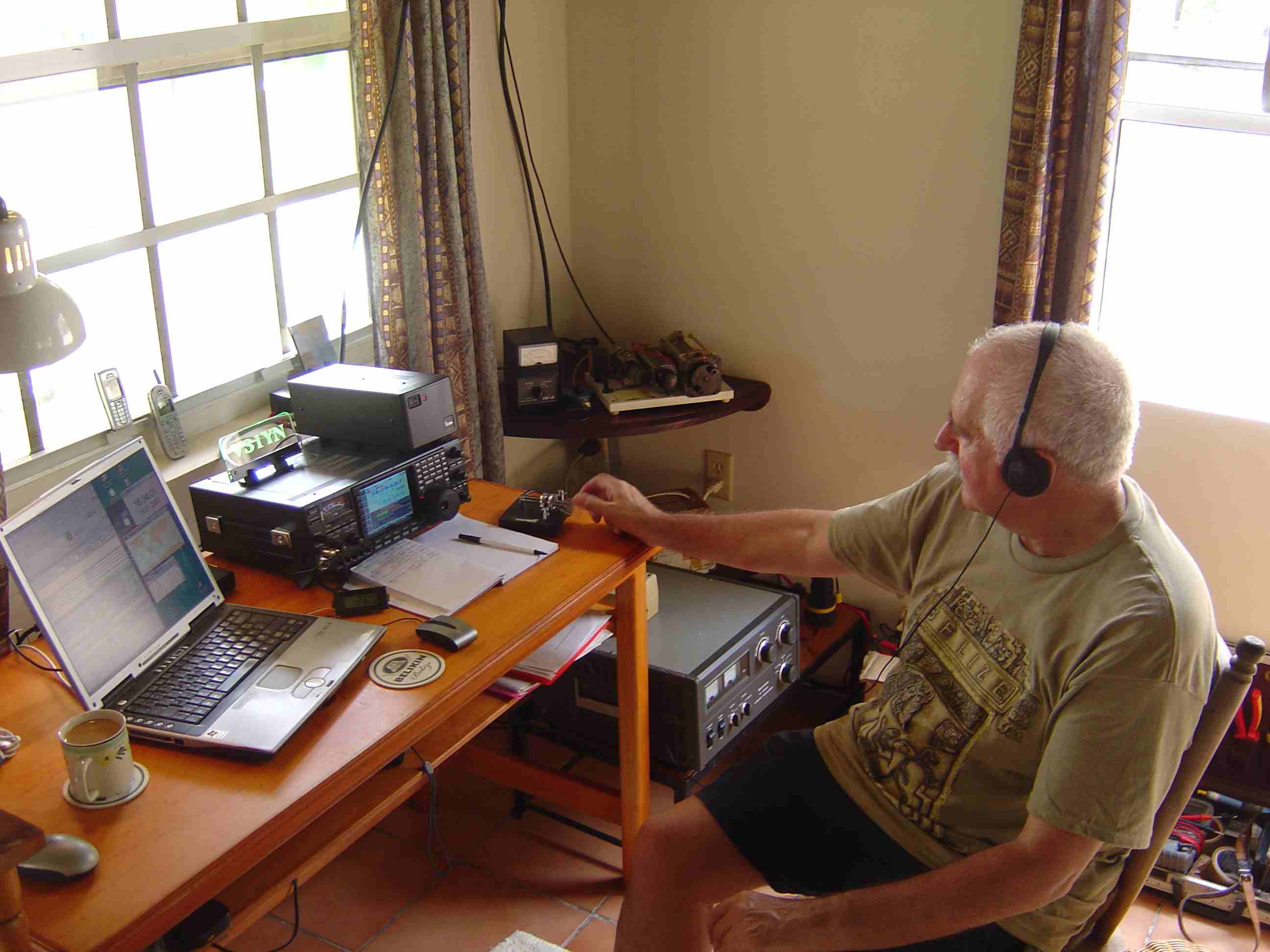

Transceiver: ICOM 756 PRO II, output 100 W
Linear Amplifier: Kenwood TL-922 A, output 500 W

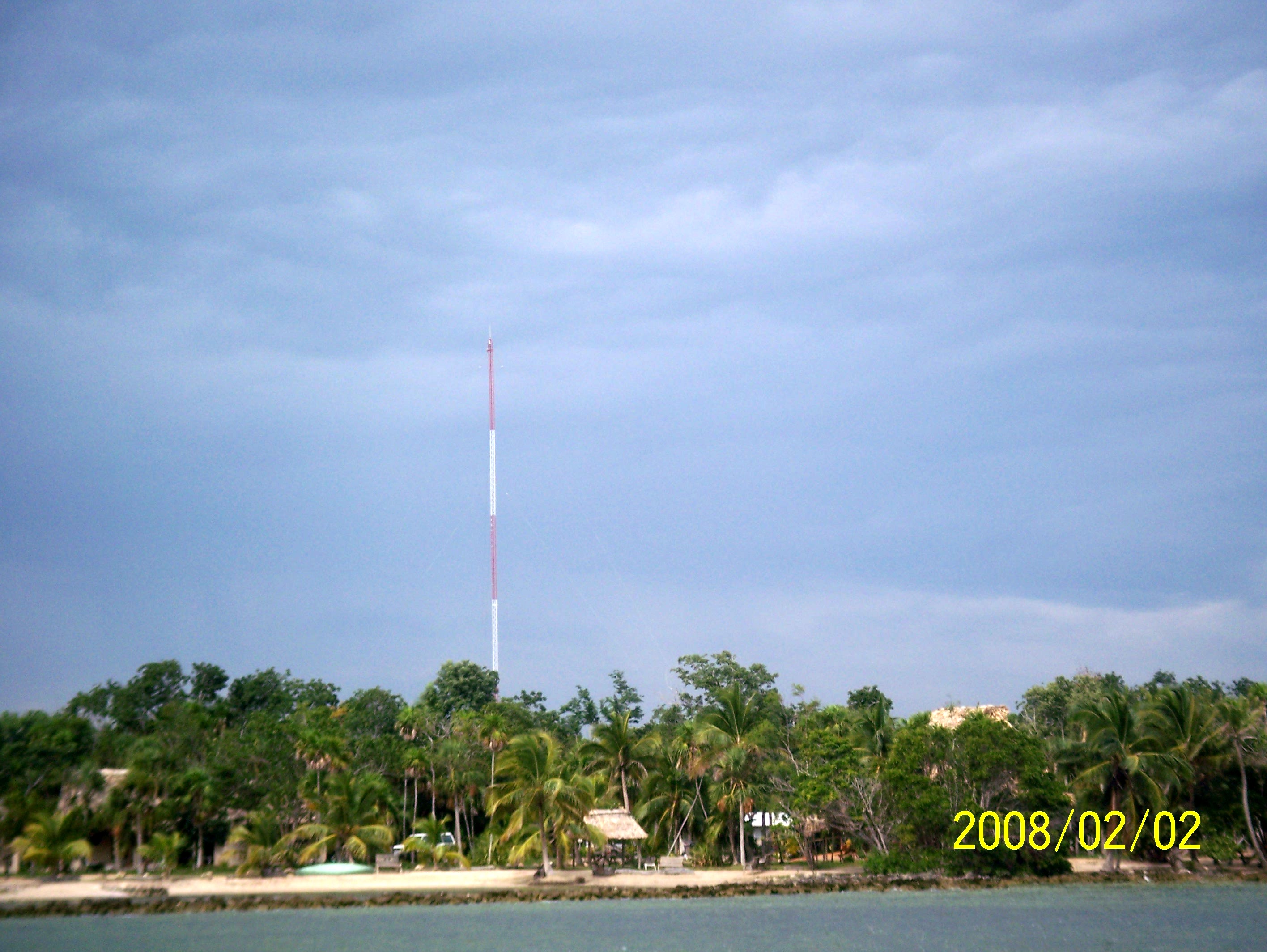

Main Antenna

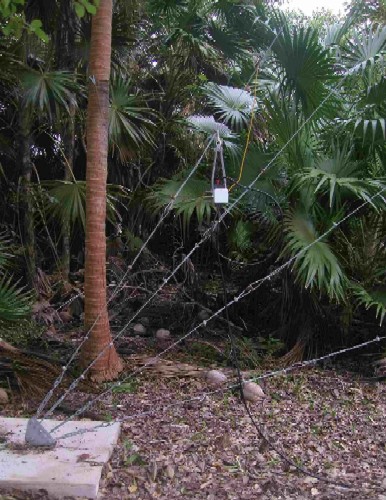

160 m: 36 m vertical with 3 elevated radials 50 m each in 3 m height, preset antenna tuner;
Link to design of 160 m antenna (Entwurf der 160 m Antenne).
80 m: half wavelength sloped vertical dipole to mast top, end-fed from ground by a preset antenna tuner.

40 m:  three quarter wavelength wire to 27 m height at mast, end-fed from ground as above

30 m: three quarter wavelength to 18 m height at mast, end-fed with other two above by a common antenna tuner and antenna separator
Second Antenna

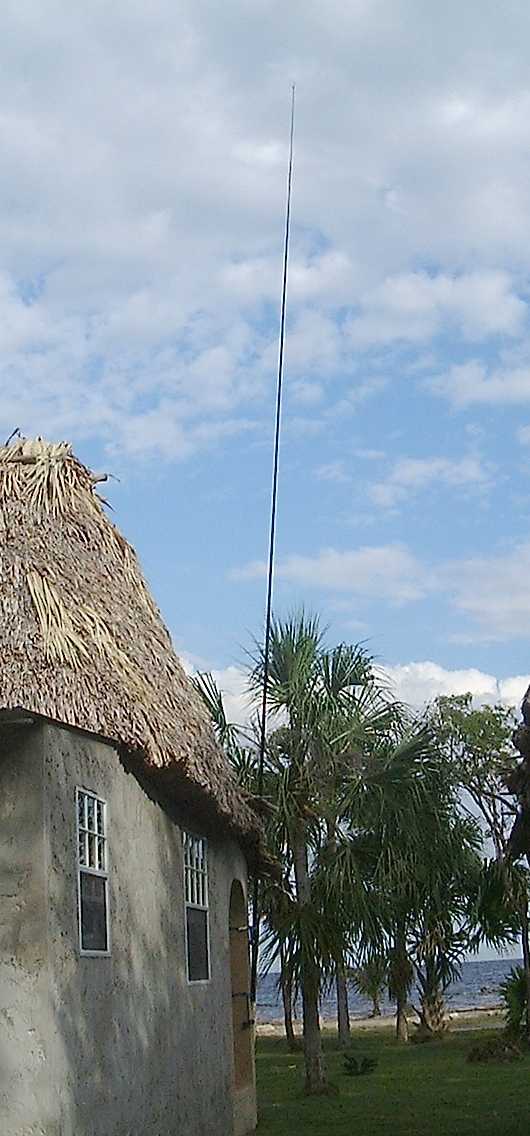

10 m vertical with 4 elevated radials in 3 m height, ICOM AT-130 automatic antenna tuner

Receive Antenna
300 m (1000 ft) two wire Beverage for low bands directed 040 degrees to
Europe (switchable to 220 degrees for New Zealand, Australia)

Bestätigung von Funkverbindungen

The preferred method of QSL is by Logbook of the World LotW of ARRL.  All QSO's are entered into the Logbook of the World (LotW) of ARRL.  But your card is welcome too.  Please send your request for QSL to DJ4KW. QSL-cards sent via the bureau must be marked via DJ4KW.  QSO's will be checked using the computer log and QSL-labels will be printed automatically.  Please no e-QSL.

All incoming QSL's will be answered.  QSL's received from the bureau will be answered using the QSL-service of the DARC (German Amateur Radio Club).  QSL's received by mail will be answered direct, if self-addressed envelope and sufficient return postage are supplied; German stamps, 1 IRC, or 2 US$.  If insufficient postage or no self-addressed envelope is supplied, your QSL will be answered via the bureau.   If you want to receive a QSL-card via the bureau, it is not necessary to send your QSL-card.

You can send a QSL-request with your QSO-details by E-mail to: v31yn (ät)

For a complete photo album please see




Maya Temple


Leguan (Wish Willy)

Kleines Bild anklicken: vergrößerte Anzeige in separatem Fenster

click on small picture for enlarged view in a separate window

Der Leguan (Wish Willy) ist ein typisches Tier in Belize, ungefähr die Größe einer Katze.
The Ieguan (wish willy)  is a typical animal of Belize, about the size of a cat.

Operation in 2013

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)

Please see


Operation in 2012

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)

Torsten (DG7RO/V31TF) and YL Alexandra (DO5ALX/V31RU)

06-Jan-2012 Landing in Belize

28/29-Jan-2012 CQ WW 160m CW

01-Feb-2012 – 08-Feb-2012 Operation V31YN/P from Blue Marlin Lodge IOTA number NA-180

11/12-Feb-2012 WPX RTTY

18/19-Feb-2012 ARRL International DX Contest CW, Saturday 0000-Sunday 2359

25/26-Feb-2012 CQ 160 m SSB

Rückblick / History


Operation in 2011

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)

Torsten (DG7RO/V31TF) and YL Alexandra (DO5ALX/V31RU)

06-Jan-2011 Arrival in Belize
29-Jan-2011 CQ WW 160m CW

02-Feb-2011 – 08-Feb-2011 Operation V31YN/P from Blue Marlin Lodge IOTA number NA-180

05-Feb-2011 FOC Marathon (activity weekend, no contest, calls from non-members welcome at V31YN)
12-Feb-2011 WPX RTTY

19-Feb-2011 ARRL International DX Contest CW, Saturday 0000-Sunday 2359

25-Feb-2011 CQ 160 m SSB

27-Feb-2011 End of operation


4051 QSOs, 25 % in contests

3718 CW
 333 RTTY
   0 Fone


1131 EU

  91 AS
  29 AF

2699 NA

  88 SA

  13 OC

1665 CW QSOs on 1.8 MHz


Operation in 2010

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)

Ben (DL6RAI/V31RI) and YL Luise (DL2MLU/V31MU)

14-Jan-2010            Arrival
29-Jan-10                CW WW 160 m CW
01-FEB-2010 – 07-FEB-2010 Operation V31YN/P from Blue Marlin Lodge IOTA number NA-180
05-Feb-10                FOC activity weekend
13-Feb-10                WW RTTY WPX
20-Feb-10                ARRL DX CW

27-Feb-10                CQ 160 SSB
28-Feb-2010 End of operation
02-Mar-2010 Flight back

Operation in 2009

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)

17-Jan-09     Arrival
23-Jan-09     CQ WW 160 m CW
30-Jan-09     FOC Marathon, activity weekend

14-Feb-09    WPX RTTY
21-Feb 09     ARRL DX CW

Operation V31YN/P from Blue Marlin Lodge IOTA number NA-180:

25-Feb-2009 Arrival
04-Mar-2009 Departure

12-Mar-2009            Flight back


5495 QSO

  Bands        Modes    Continents
  -----        -----    ----------
1581 160m     4812 CW     1736 EU
1943  80m      678 RY      255 AS
 350  40m        5 PH       38 AF
 512  30m                 3341 NA
 197  20m                  109 SA
  13  15m                   15 OC
  12  12m
   7  10m

Operation in 2008

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)


12-Jan-08     Arrival
01-Mar-2008            Flight back


26-27 Jan 08 CQ WW 160m CW. 612 QSOs, 54 states/provinces, 43 DXCC

01-03 Feb 08 FOC members activity weekend
160m 61/80m 101/40m 87/20m 57/15m 45/10m 0 QSOs
25 DXCC entities, 5 continents, 8 stations on 5 bands

09-10 Feb 08 WPX RTTY 80m 158/40m 206/20m 32/15m 30/10m 1

16-17 Feb 08 ARRL DX CW 516 QSOs


Pictures V31YN V31GW (c) 2008 DJ4KW DK9GGclick on pictures to enlarge, picture will open in a separate window, close window after viewing
Bild zum Betrachten anklicken, vergrößerte Anzeige in eigenem Fenster

Bottom row:
Left picture: Ant-Eater in the bush close to our house

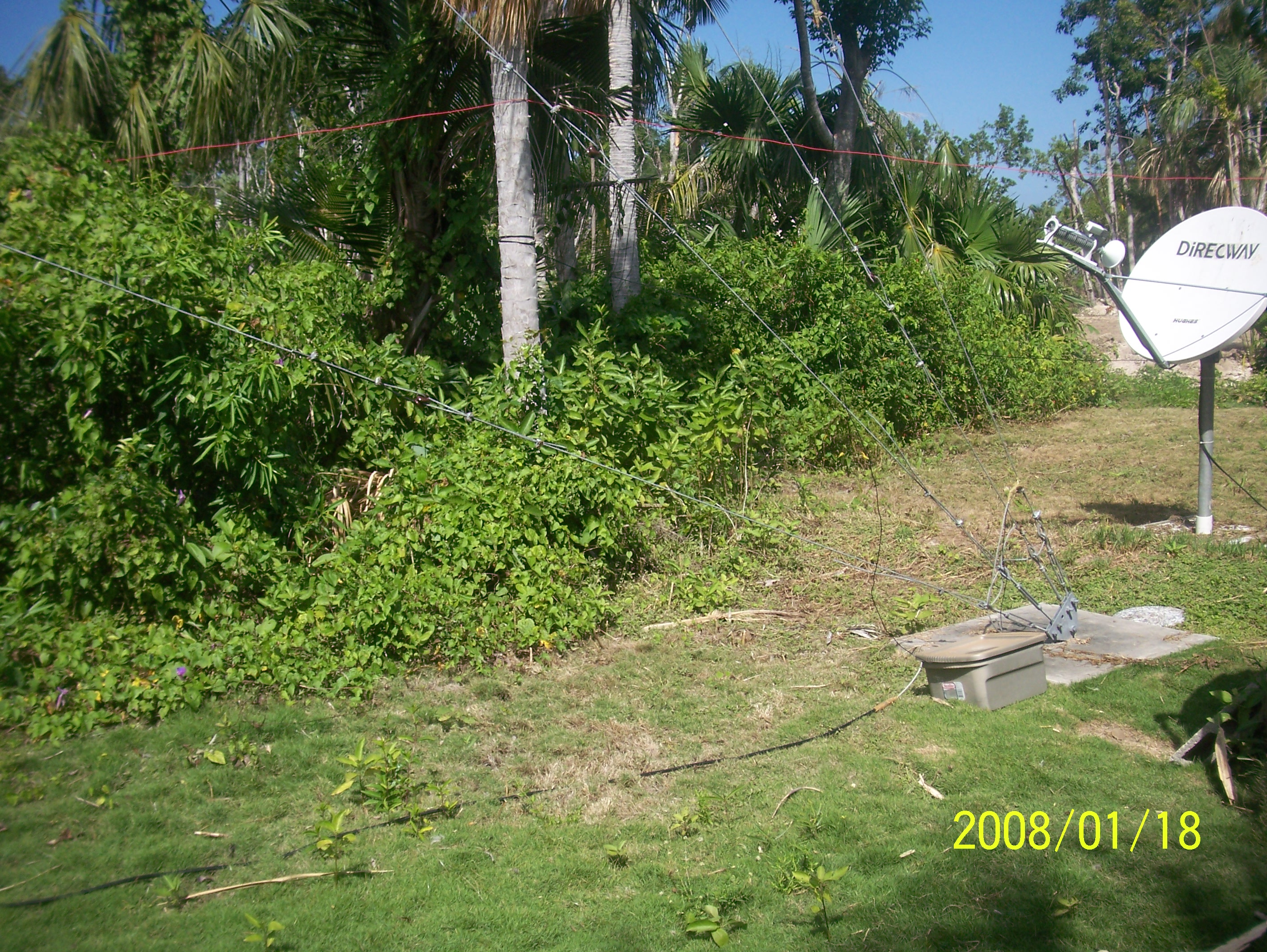

Right picture: Longest guy wire fed from ground as sloping half-wave dipole for 80 m,
next lower guy wire fed as three-quarter-wavelength sloper for 40 m.
Red wire is one of the elevated radials for 160 m.
Satellite dish in background provides internet access.


Operation /P from Blue Marlin Lodge IOTA number NA-180 for one week
19-Feb-2008           Arrival
26-Feb-2008           Departure
566 QSOs

Total 4239 QSOs

August 2007 - Hurricane "Dean"

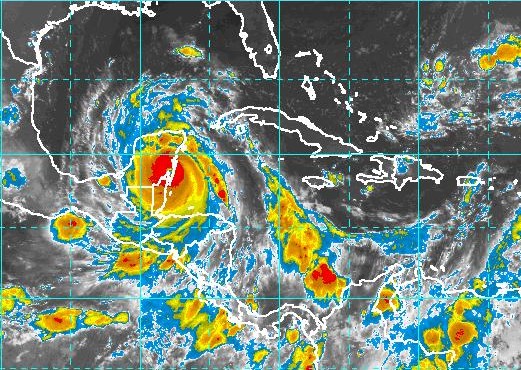

Photo NOAA GOES-EAST of Tuesday August 21st 2007 at 08:45 UTC (02:45 local time)

Our location is on the lower edge of the red marked hurricane zone near the border between Mexico and Belize.

Picture: Cumulative wind history of Tuesday August 21st 2007

We did not receive any news from Consejo till Thursday August 23rd morning.  There were reports from and, but the news teams did not come further than the district capital Corozal Town, about 10 miles South of our location.

At the location of V31YN many trees were unrooted and the roof of the restaurant was almost completely blown away, and there was damage to the other buildings, but nobody was hurt.  The 120 ft antenna mast withstood the 165 mph winds, V31AE had already hurricanes in mind when he designed it for us, well done Robert!  We lost all elevated radials.

Cell phones worked again Wednesday Aug. 22nd 4 pm, but still no electricity, no water, no internet.  The Prime Minister of Belize declared the Corozal District a disaster area after extensive damage to homes and the mass destruction of crops.

Operation in 2007

Gerd (DJ4KW/V31YN) and YL Gisela (DK9GG/V31GW)

11-Jan-07 Arrival
12-Jan-07 Start of operation

03-Feb-2007 two additional operators joined:
Frank (DL2SWW/V31FG) and YL Gabi (DF9TM/V31DG)

Consejo Shores and Turneffe NA 123

Gerd V31YN

Gisela V31GW

Gabi V31DG

Frank V31FG


All four operators were active from the Turneffe Reef, IOTA number NA-123 for one week

     80  40  30  20  17  15  All
CW  363 901 101 136 141  16 1658
SSB               3   5
SSB              28   2       30
RTTY                         270
CW                           233

14-Feb-2007 Departure

V31YN total 3650 contacts

26-Feb-2007 End of activity
27-Feb-2007 Departure from Consejo Shores.
Flight back to Europe


Activity in contests (times in UTC, local time 6 hours earlier)

27-28 Jan 07

Saturday 0000 - Sunday 2359
CQ 160-Meter Contest CW
op V31YN 639 QSO's, 57 states/provinces


10-11 Feb 07

Saturday 0000 - Sunday 2359
CQ World-Wide
RTTY WPX Contest
call V31GW/P, 270 QSO's


17-18 Feb 07

Saturday 0000 - Sunday 2400
ARRL International DX Contest CW
V31YN 903 QSO's, 58 states/provinces
First place world wide in 160 m single band category


24-25 Feb 07

Saturday 0000 - Sunday 2359
CQ 160-Meter Contest SSB
op V31DG 58 QSO's


Operation in 2006: 13-Jan-2006 ... 20-Feb-2006 from Consejo Shores  Link to design of 160 m antenna (Entwurf der 160 m Antenne)

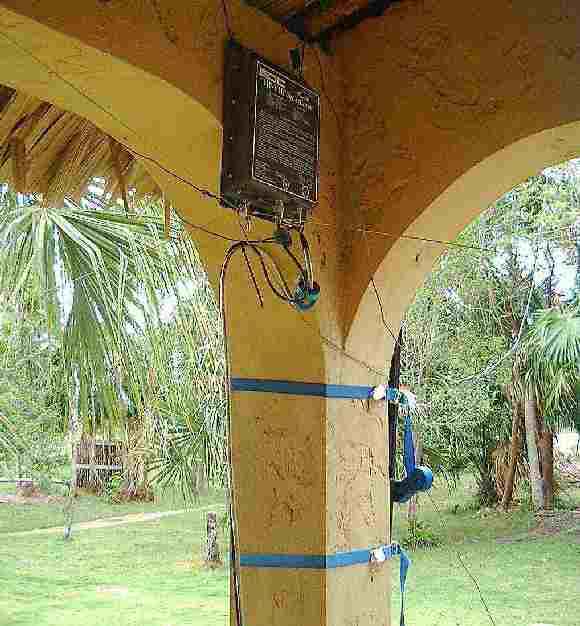

160m Ant. Tuner

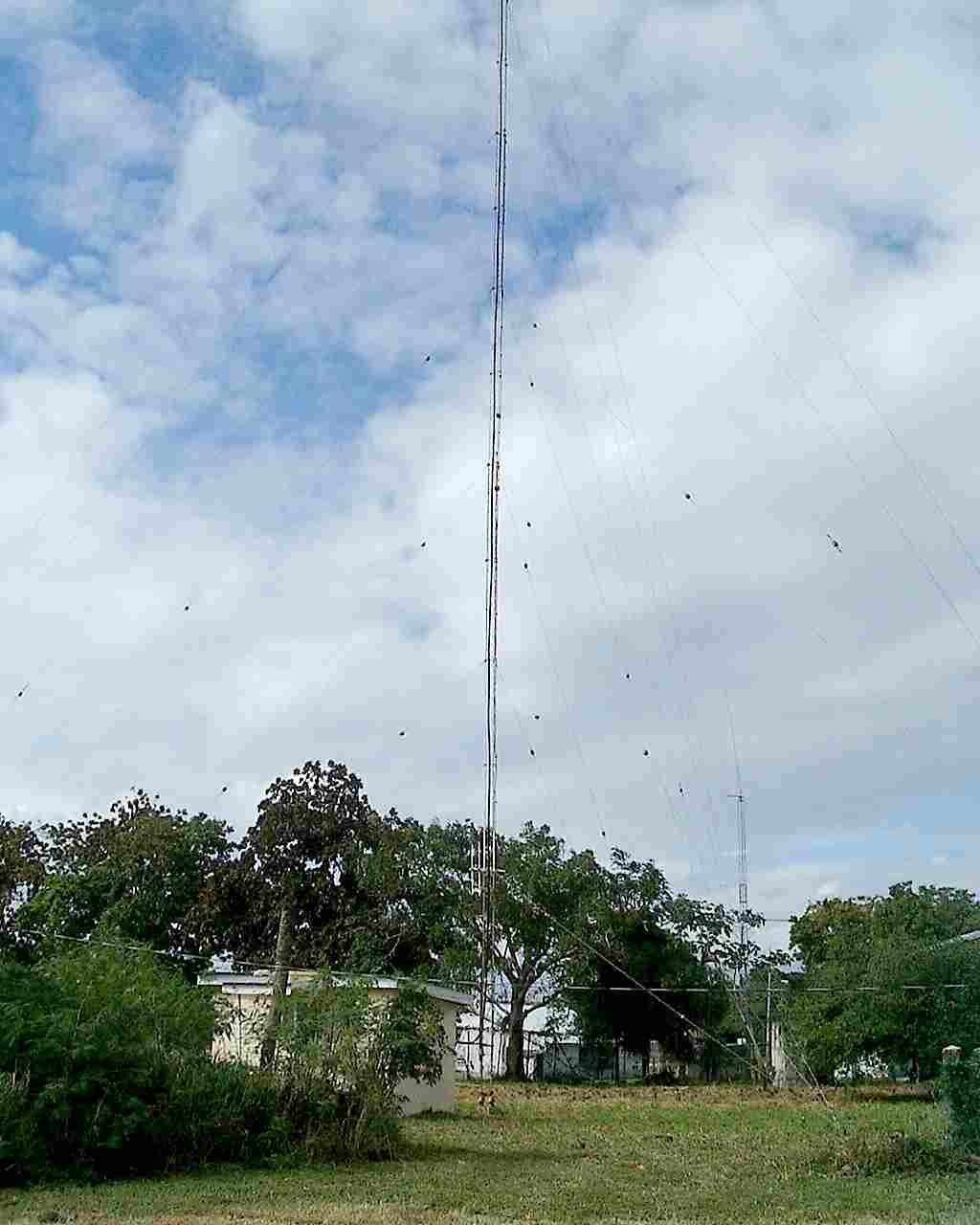

36m Mast





Station: ICOM-756 PRO II, 100 W output, Antenna 160 m: 36 m vertical with 3 elevated radials 50 m each in 3 m height, preset antenna tuner; follow link to design above. 80 m: 41 m sloped vertical dipole to mast top, end-fed from ground by a preset antenna tuner.  Other bands: 10 m vertical with 3 elevated radials in 3 to 4 m height, manual home made antenna tuner. DL4RCK logging software RCKLog for CW DX-pedition and contests, RCKRTTY for RTTY contests.

Total over 3000 QSOs (V31YN  2482 CW QSOs, 52 % on 160 m; V31GW 605 RTTY contacts),

10   10    2
12   1     1
15   115   25
17   39    15
20   176   38
30   38    10
40   604   62
80   200   38
160  1299  49
(54 top band contacts with JA including duplicates)

13 ... 31-Jan-2006
800 CW-QSOs plus 105 RTTY-QSOs in UK DX RTTY-Contest and 20 RTTY-QSOs in BARTG RTTY-Contest

01-Feb ... 08-Feb from Blue Marlin Lodge, South Water Caye  IOTA NA-180
700 CW-QSOs 40, 20, 15, 10 m

09-Feb ... 20-Feb
300 CW QSOs plus 480 RTTY QSOs with V31GW in WPX RTTY Contest and 600 CW-QSOs in ARRL DX CW contest single band 160 m low power category

Operation in 2005: 09-Jan-2005 ... 01-Mar-2005 from Consejo Shores
29-Jan ... 06-Feb with V31GW from Blue Marlin Lodge, South Water Caye  IOTA NA-180

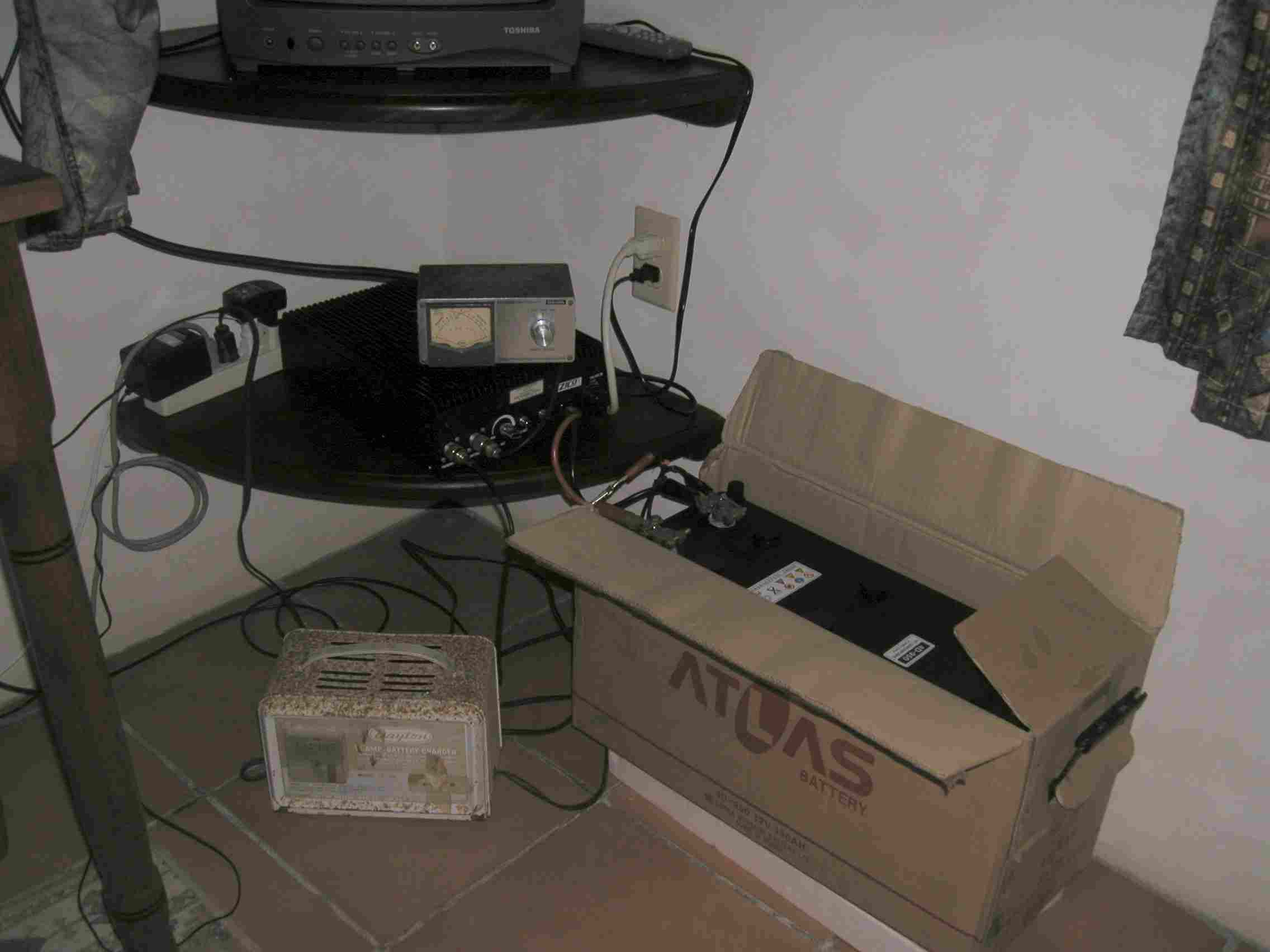

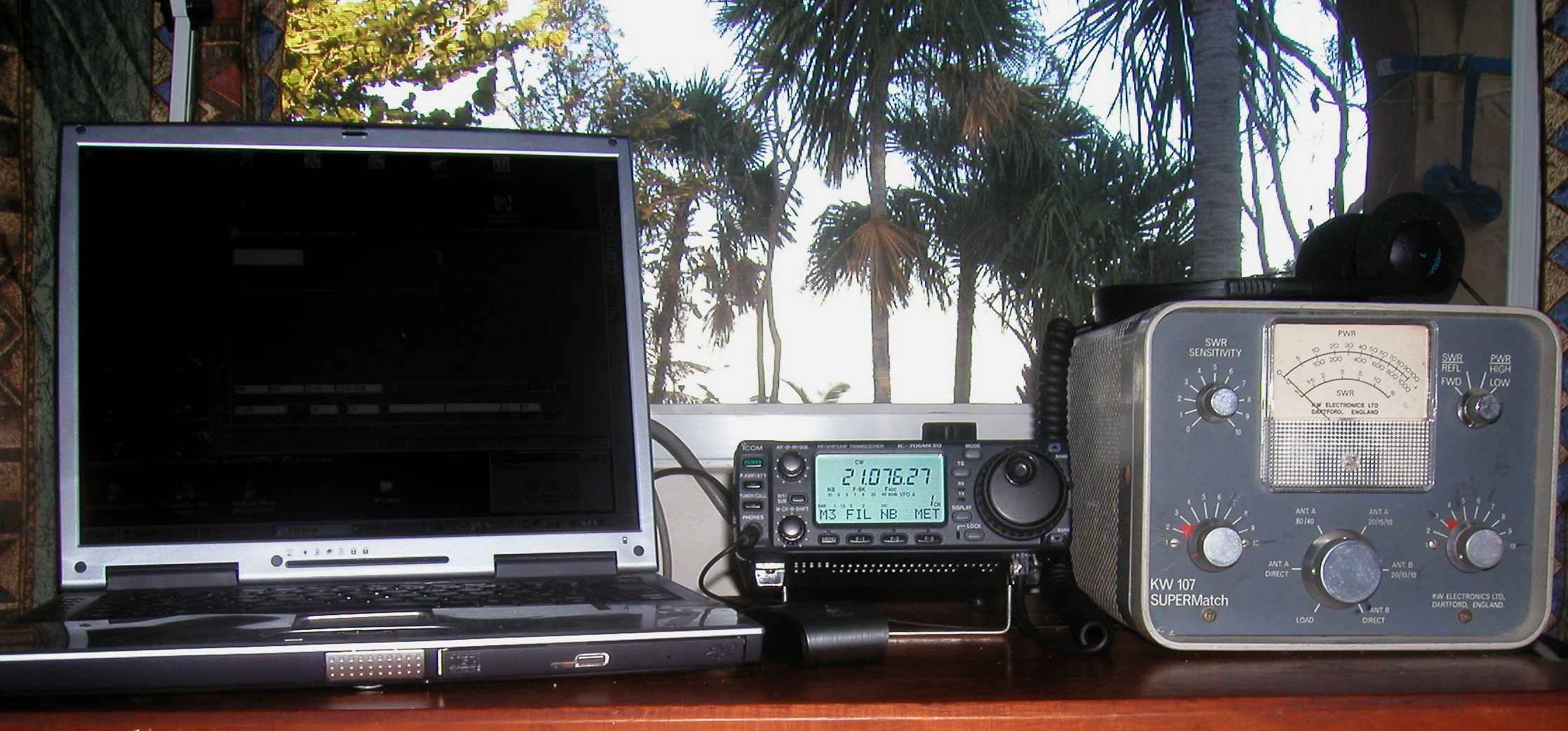

Station: ICOM-706 MK II, 100 W output; solid state PA for 160 m, 400 to 600 W output.

V31YN: 3850 CW-QSOs. First contacts into Japan on 160 meters on 21 and 22-Feb-2005
V31GW: 850 RTTY-QSOs in multi-op contest-operation

28-Jan-2005 V31-FOC-members meeting and Central American dinner, in picture below
V31LZ Rumen # 1826 (LZ1MS) and Elena V31RW (LZ3RY)
V31YN Gerd # 1833 / # 737 (DJ4KW) and Gisela V31GW (DK9GG)
V31JP Joe # 1743 (K8JP) and Bev

2005 FOC meeting

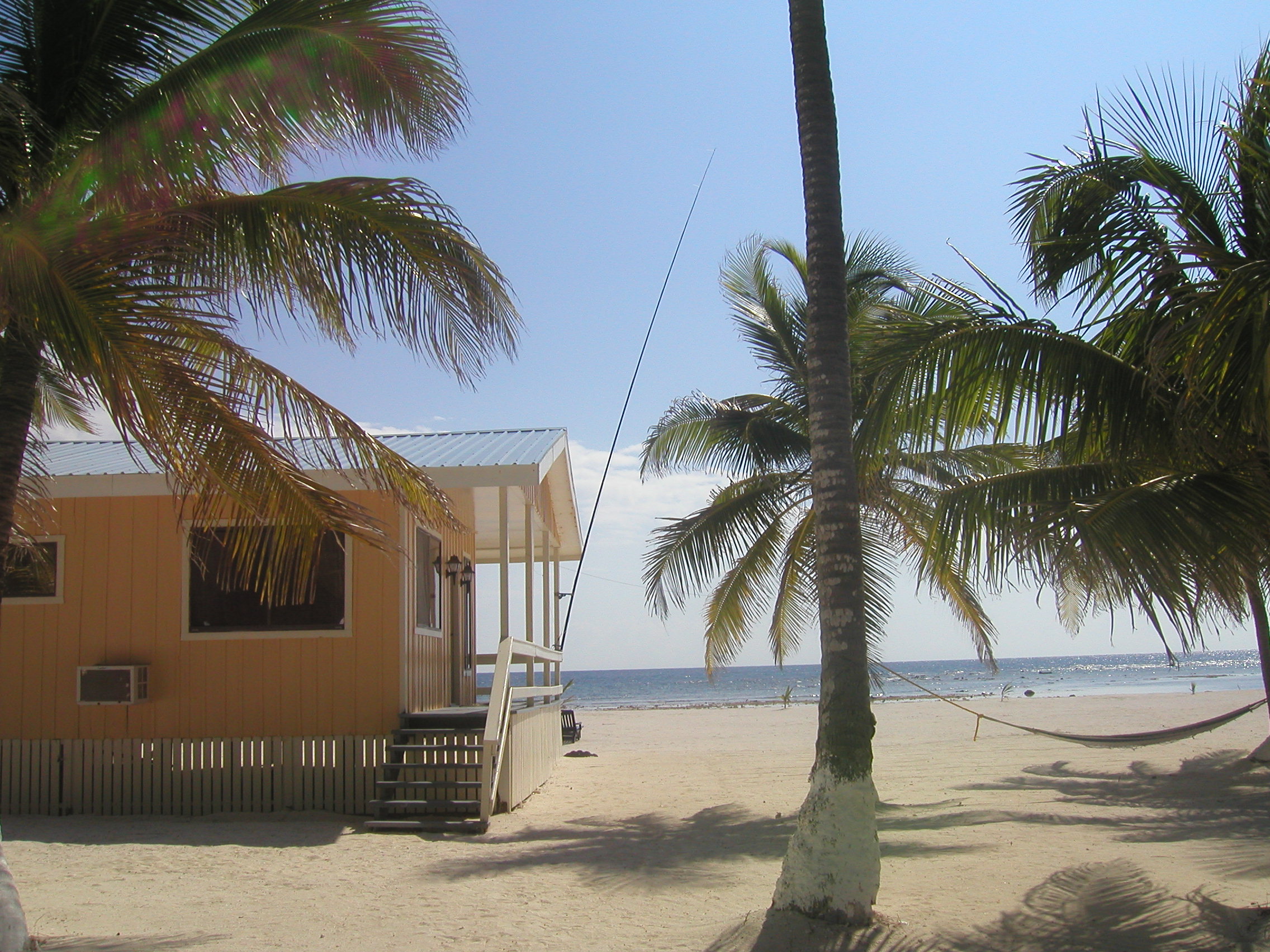

South Water Caye

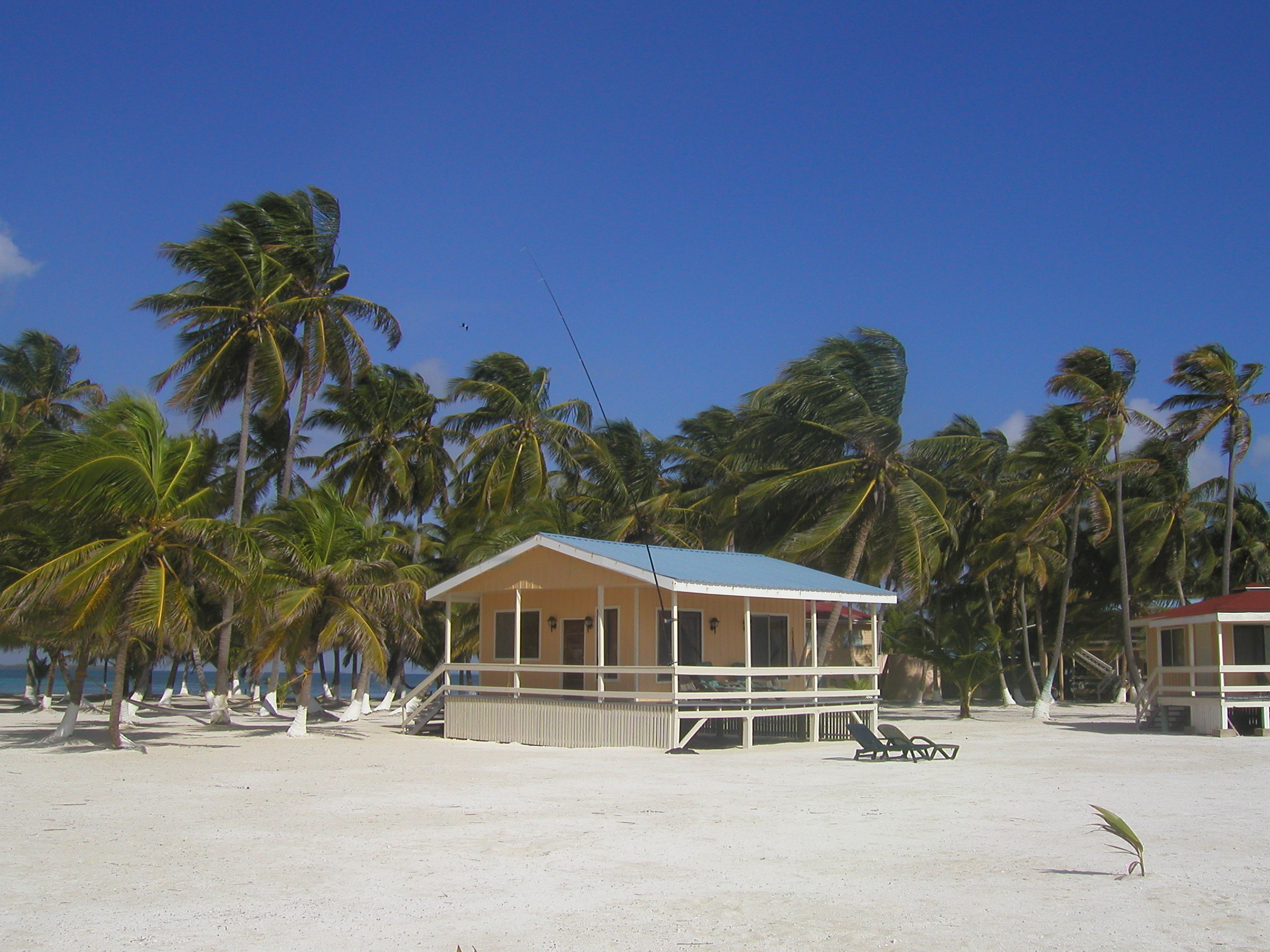

Blue Marlin Lodge







Operation in 2004: 10-Jan-2004 ... 28-Feb-2004 with V31GW, from Consejo Shores

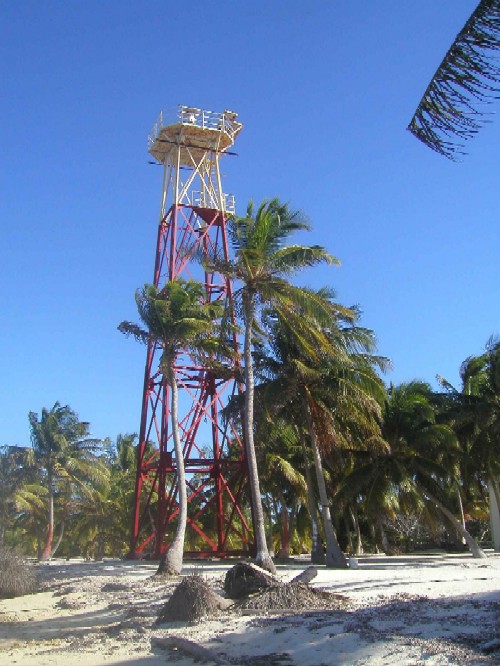

01 ... 06-Feb-2004 with V31GW Lighthouse Reef IOTA NA 123

Kleines Bild anklicken: vergrößerte Anzeige in separatem Fenster
click on small picture for enlarged view in a separate window

Station: ICOM-706 MK II G, 100 W output; solid state PA for 160 m, 400 to 600 W output.

V31YN: 4500 QSOs in Telegrafie, davon ein Drittel auf 160 Meter.  V31GW: 750 QSOs in Funkfernschreiben im multi-OP Contest-Betrieb
V31YN: 4500 CW-QSO's, one third on 160 meters. V31GW: 750 RTTY-QSO's in multi-op contest-operation

Operation in 2003: 08-Jan ... 05-Feb-2003 with V31GW, 06-Feb ... 27-Feb-2003 with V31DG, V31FG, and V31GW from Consejo Shores and San Pedro Ambergris Caye IOTA NA-073
5000 QSO's in CW as V31YN (25 % on 160 m) and 1000 in RTTY as multi-OP stn V31GW

Operation in 2002: 06-Jan-2002 ... 07-Feb-2002 from Consejo Shores and Corozal Town
12-Jan ...
19-Jan with V31GW from Lighthouse Reef  IOTA NA-123

Operation in 2001: 10-Jan-2001 ... 19-Feb-2001 from Consejo Shores and Corozal Town
with Gisela V31GW 01... 09-Feb-2001 from Manta Resort
Glovers Reef (check Gisela's homepage)  IOTA NA-180

Operation in 2000: 10-Nov ... 16-Nov-2000 from Consejo Shores,
CW/Telegrafie and RTTY/Funkfernschreiben in WAEDC RTTY contest




Station V31YN, nur für digitale Betriebsarten Morsetelegrafie (CW, Aufnahme nach Gehör) und Funkfernschreiben (RTTY, PACTOR, BPSK31).  Sende-Empfänger ICOM 706, Netzteil PS85.  Es gibt kein Mikrofon und keine Moresetaste.  Sendungen für  Telegrafie und Fernschreiben werden nur durch den Rechner getastet.  Der Computer loggt alle Verbindungen, deshalb ist an der Station auch kein Logbuch zu sehen.  10 Meter Vertikal-Antenne gestattet interkontinentalen Betrieb auf Kurzwellenbändern zwischen 7 und 29 MHz (Wellenlänge 40 ... 10 m).   Die Lage am Wasser bietet optimale Ausbreitungsbedinungen Richtung USA/Kanada und Europa.  Das Glasfaserrohr für die Antenne ist mit 2 blauen Bändern befestigt.  Vom SGC 321 Antennen-Anpassgerät gehen Drähte, je 20 m, als Gegengewicht in über 2 m Höhe ab.

Nachfolgend zwei kurze Ton-Mitschnitte des Funkbetriebs in Morse-Telegrafie

Verbindungen mit Belgien (ON6DP) und zwei US-Stationen (N4IG und K7ZV)

Anruf Slowakischer Station (OM5MF) gleichzeitig mit vielen anderen

Station V31YN, digital modes only: Morse Code (CW, received by ear) and Radio Teletype (RTTY, PACTOR, BPSK31).  Transceiver ICOM 706, power supply PS85.  There is no microphone and no telegraph key.  Transmissions for the Morse code and teletype are only keyed by the computer.  The computer also logs all contacts, so there is no logbook to be seen on the station. 10 meters vertical antenna allows intercontinental operation on short wave bands between 7 and 29 MHz (40 ... 10 m wavelength).  The location at the sea offers optimum propagation conditions to the US/Canada and Europe. The glass fiber rod is fixed with two blue straps.  From the SGC 231 automatic antenna tuner there are wires with 66 feet as elevated radials, over 7 feet above ground.

Listen to two short sound recordings of radio telegraphy operation in Morse code

Contacts with Belgium (ON6DP) and two US-stations (N4IG und K7ZV)

Station calling from Slovakia (OM5MF) together with many others

2001/2002: Zweiter Standort für Betrieb auf 160 m
(alternate location for 160 m operation)

Für Weitverkehr im 160 m-Band auf 1,8 MHz sollte die Antenne idealerweise mindestens 40 m hoch sein.   Robert Müller, V31AE, ermöglichte uns den Zugang zum benachbarten ehemaligen Mittelwellensender von Corozal.   Von der Spitze wurde eine Drahtantenne in das Sendehaus geführt.  Als Gegengewicht wurde das ursprüngliche Erdungssystem des Mittelwellensenders buchstäblich ausgegraben und neu angeschlossen.

Im Januar und Februar 2001 wurden auf 1,8 MHz fast 500 Stationen aus Süd- und Mittel-Amerika, Kanada, verschiedenen Ländern in Europa, Hawaii und der Großteil aus 43 Bundesstaaten der USA erreicht.  Im Jahr 2005 brach der Mast zusammen, wegen mangelhafter Wartung - nicht durch Hurrikan.

For long distance operation in the 160 m band on 1.8 MHz the antenna should be ideally at least 40 m high.  Robert Müller, V31AE, enabled us access to the former AM transmitter of Corozal Town nearby. From the mast top a wire antenna was led to the transmitter cabin.  As a counterpoise the former radial ground system of the AM transmitter was literally unearthed and reconnected.

In January and February 2001 almost 500 stations were reached on 1.8 MHz from South and Central America, Canada, different European countries, Hawaii, and the majority from 43 states of the US.  In 2005 the mast collapsed, because of insufficient maintenance - not by a hurricane.

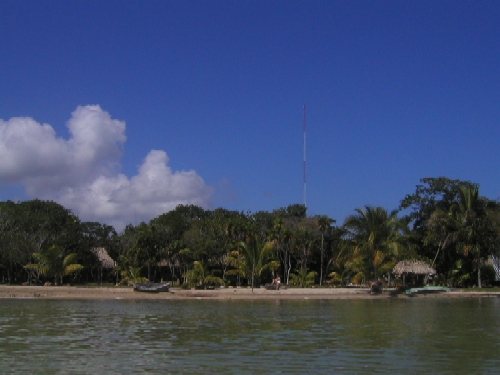

Früherer Mittelwellensender (Former AM radio transmitter)

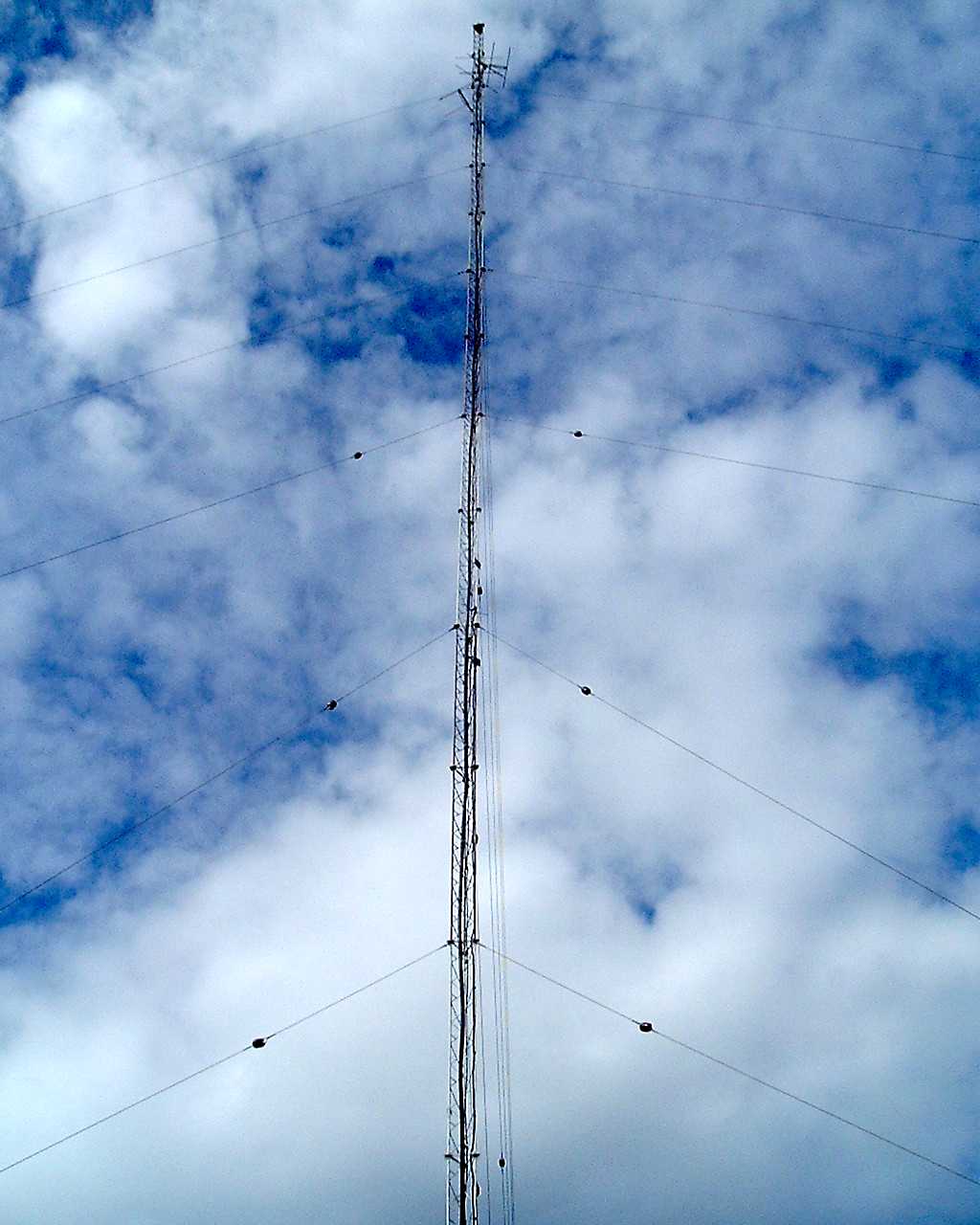

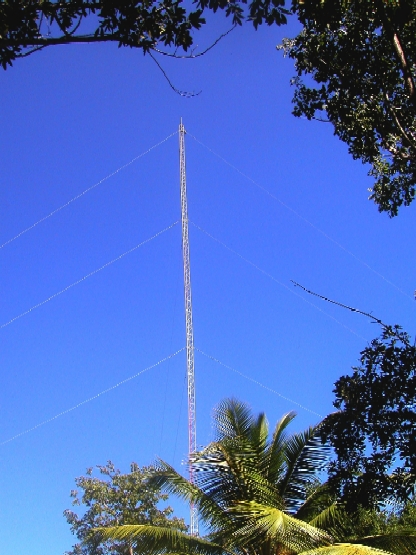

46 m / 150 ft Mast

Früherer Mittelwellensender (Former AM radio transmitter) 930 kHz in Corozal Town


46 m / 150 ft Mast

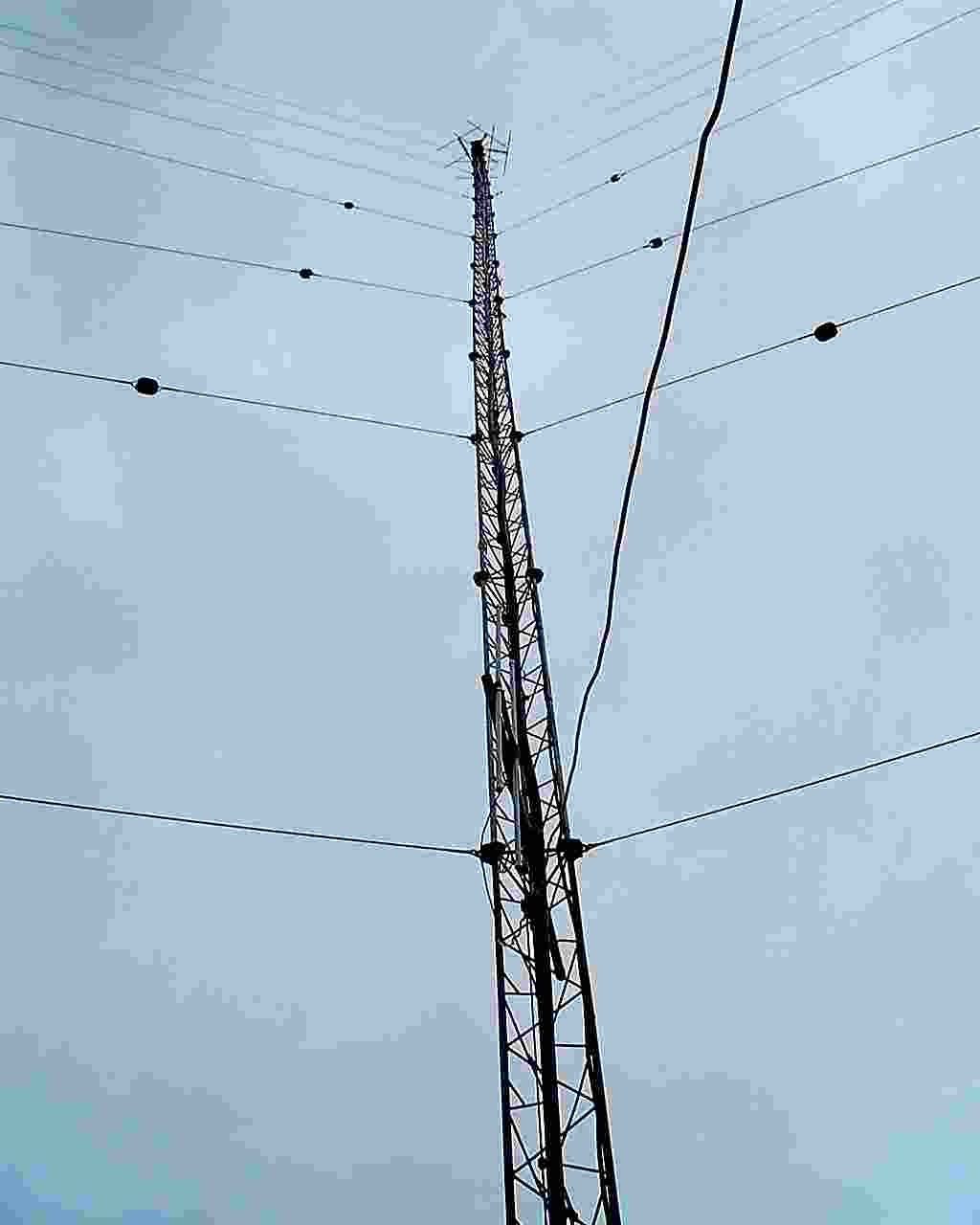

 Mast von unten (from below)

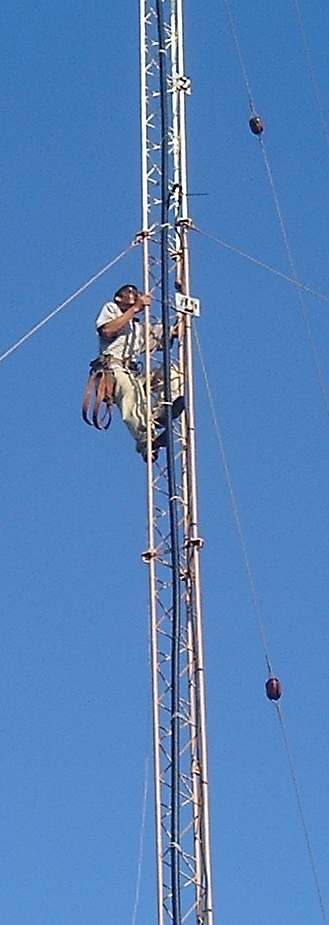

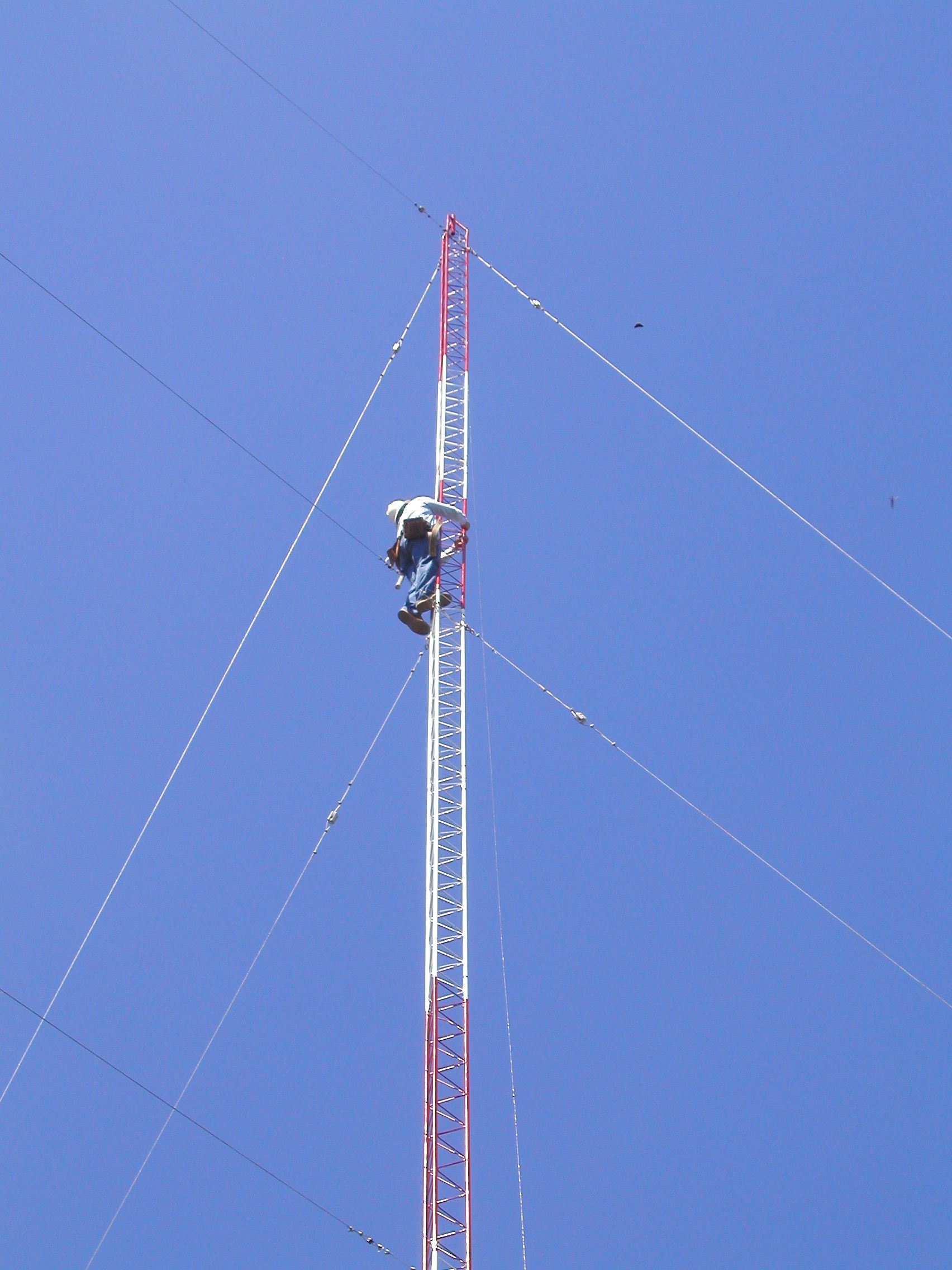

Aufstieg zum 46 m Mast (climbing the 150 ft mast)

An den 4 UKW Sendeantennen (at the 4 VHF TX antennas)

Antennendraht an der Mastspitze
(antenna wire attached to the mast-top)


Bei den UKW-Sendeantennen
(At the VHF antennas)


Neuanschluss der "Radials"/Erddrähte (Reconnection of the radial ground wires)


Betrieb neben dem UKW-Sender (Operation beneath the VHF transmitter)

Gerd Sapper DJ4KW
